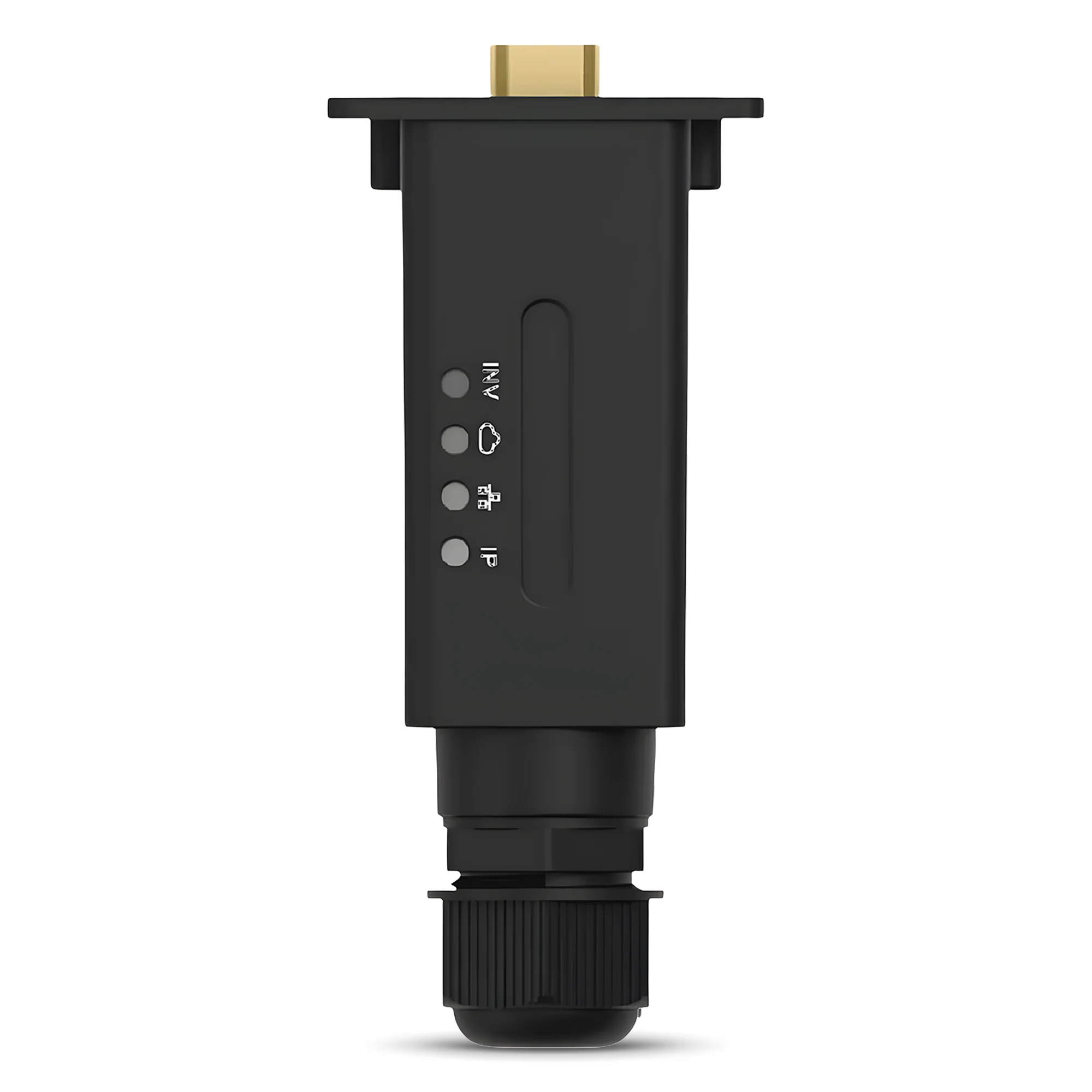

Luxpower WLAN Dongle - 72Mbps Maximum Transmission | 2.5dBi Antenna Gain | HDMI External Interface | W/ IP65 Protection Rating

The Luxpower WLAN dongle is a robust connectivity device designed for reliable communication in harsh environments with an IP65 protection grade. It operates at a rated voltage of 5V and a maximum current of 0.25A, featuring an external HDMI interface and three indicator lights. The dongle supports network access, with a baud rate of 19200bps and a maximum transmission rate of 72Mbps. It functions within a temperature range of -25℃ to 60℃ and has a communication distance of 100 meters. Equipped with both software and hardware watchdogs, it supports Modbus-RTU and Modbus-TCP protocols, with parameters set via app or remote server and firmware updated using local tools.

Key Features:

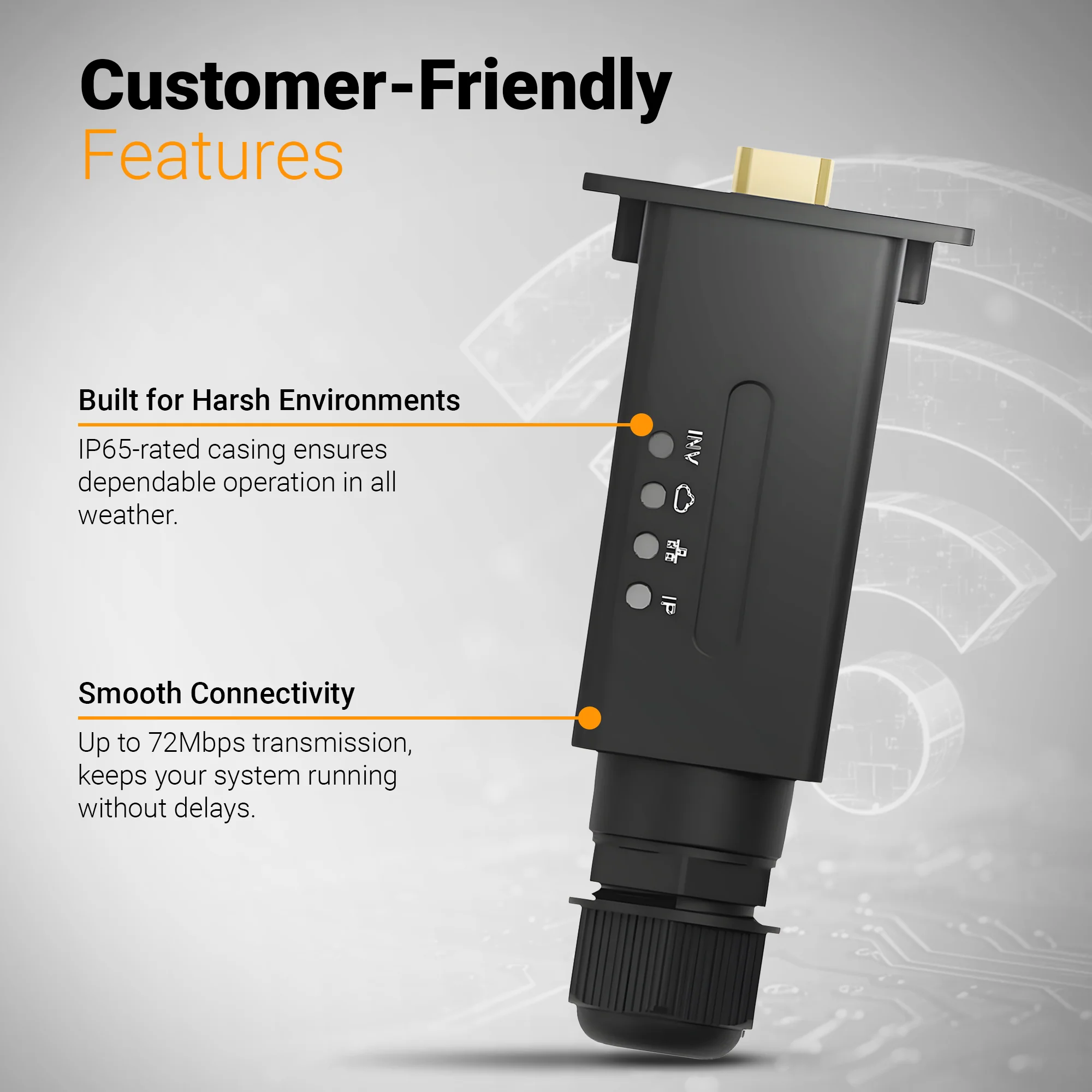

• Robust Protection: The Luxpower WLAN Dongle boasts an IP65 protection grade, making it highly resistant to dust and water ingress. This ensures the dongle remains reliable and functional even in challenging environmental conditions, ideal for outdoor and industrial applications.
• Versatile Installation: Designed for secure attachment, the Dongle is fixed to devices using screws. This installation method provides a stable and durable setup, minimizing the risk of disconnection or damage, and ensuring consistent performance in various settings.

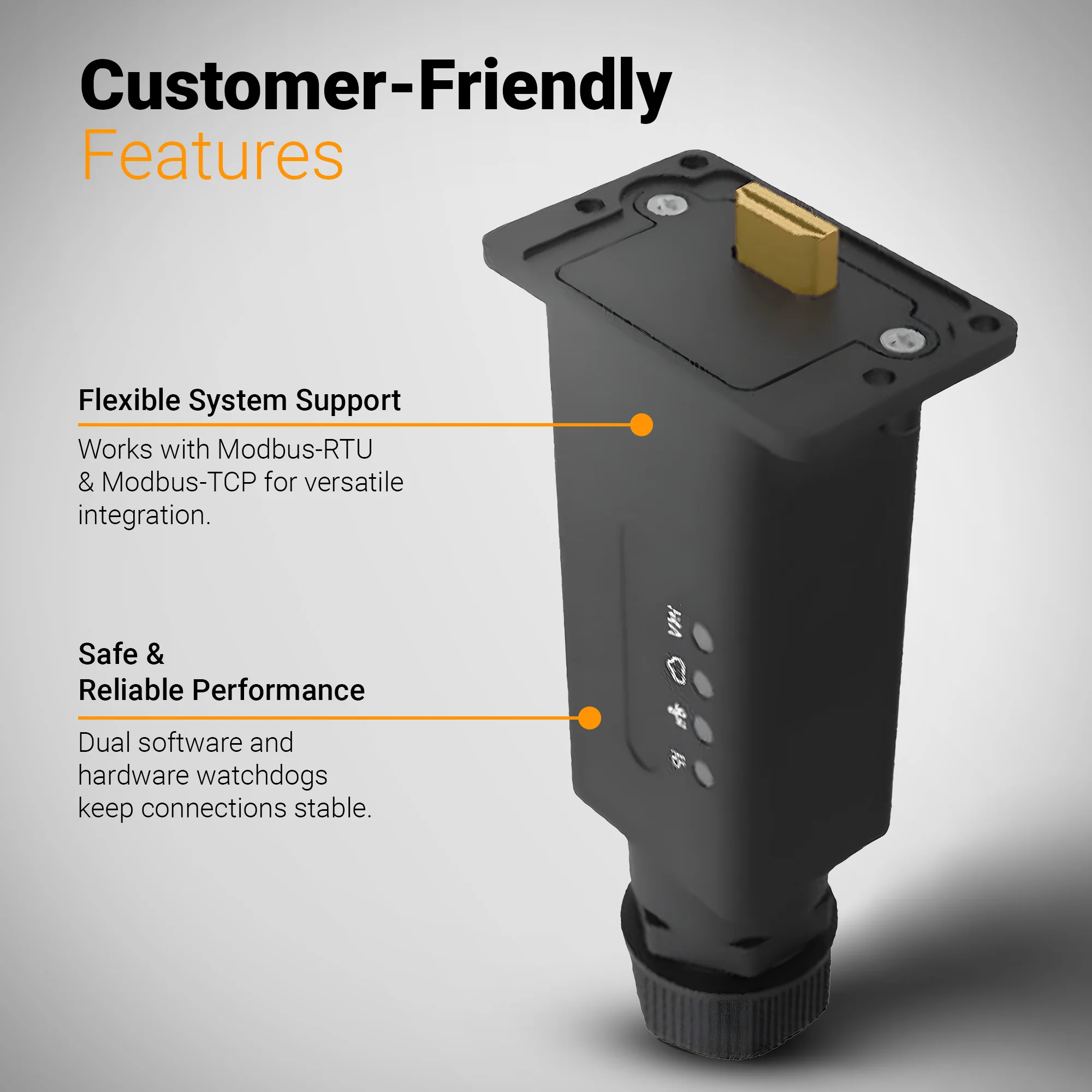

• Comprehensive Connectivity: Equipped with RS485/TTL local communication interfaces, the Dongle supports Modbus-RTU and Modbus-TCP protocols. This versatility allows seamless integration with a wide range of industrial systems and networks, enhancing its applicability across different scenarios.

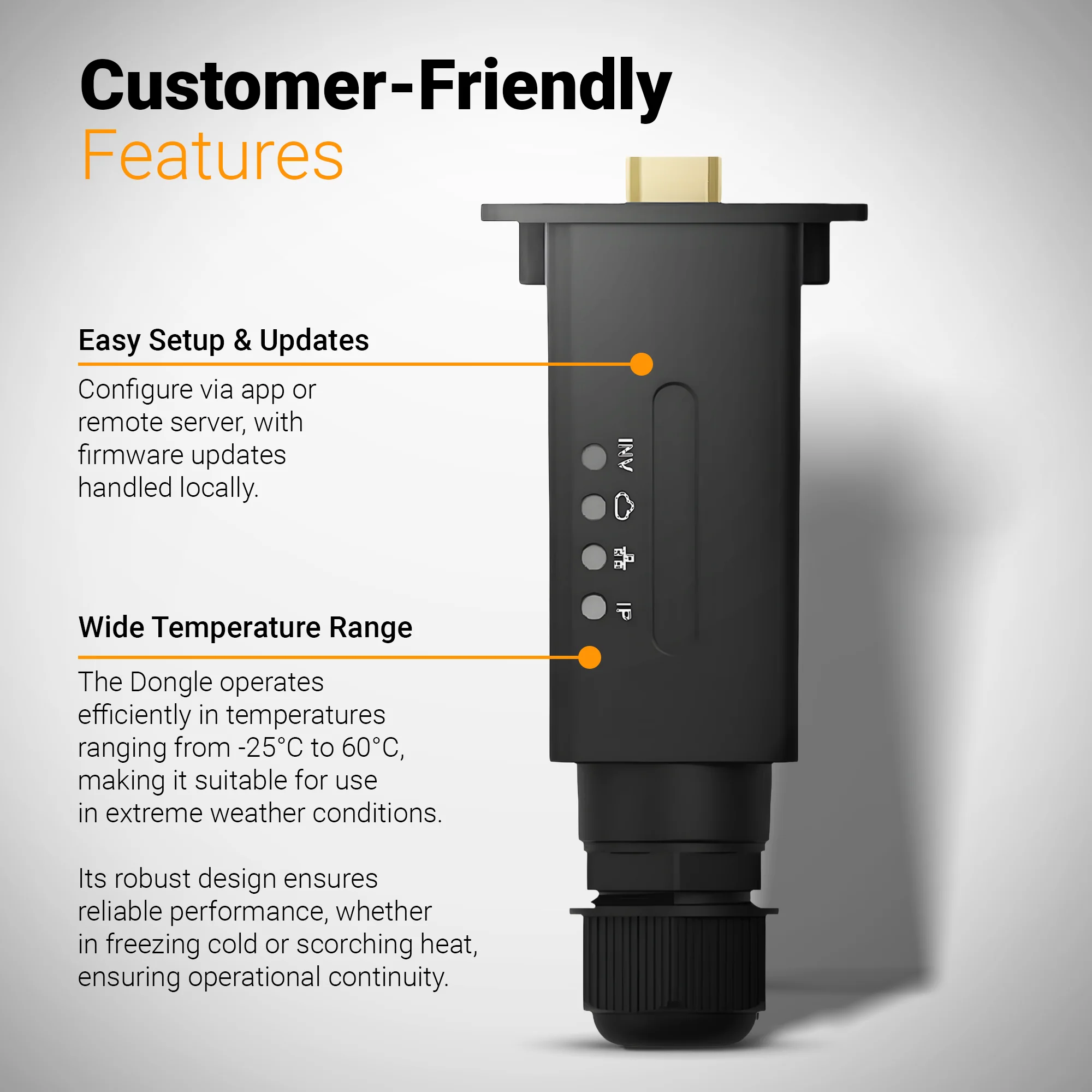

• Wide Temperature Range: The Dongle operates efficiently in temperatures ranging from -25℃ to 60℃, making it suitable for use in extreme weather conditions. Its robust design ensures reliable performance, whether in freezing cold or scorching heat, ensuring operational continuity.
• Efficient Wi-Fi Access: With a working frequency range of 2.412GHz to 2.484GHz and a maximum transmission rate of 72Mbps, the Dongle provides robust Wi-Fi connectivity. It supports a communication distance of up to 100 meters and features an external antenna with a gain of 2.5dBi, ensuring strong and stable wireless communication.

Product Specifications:

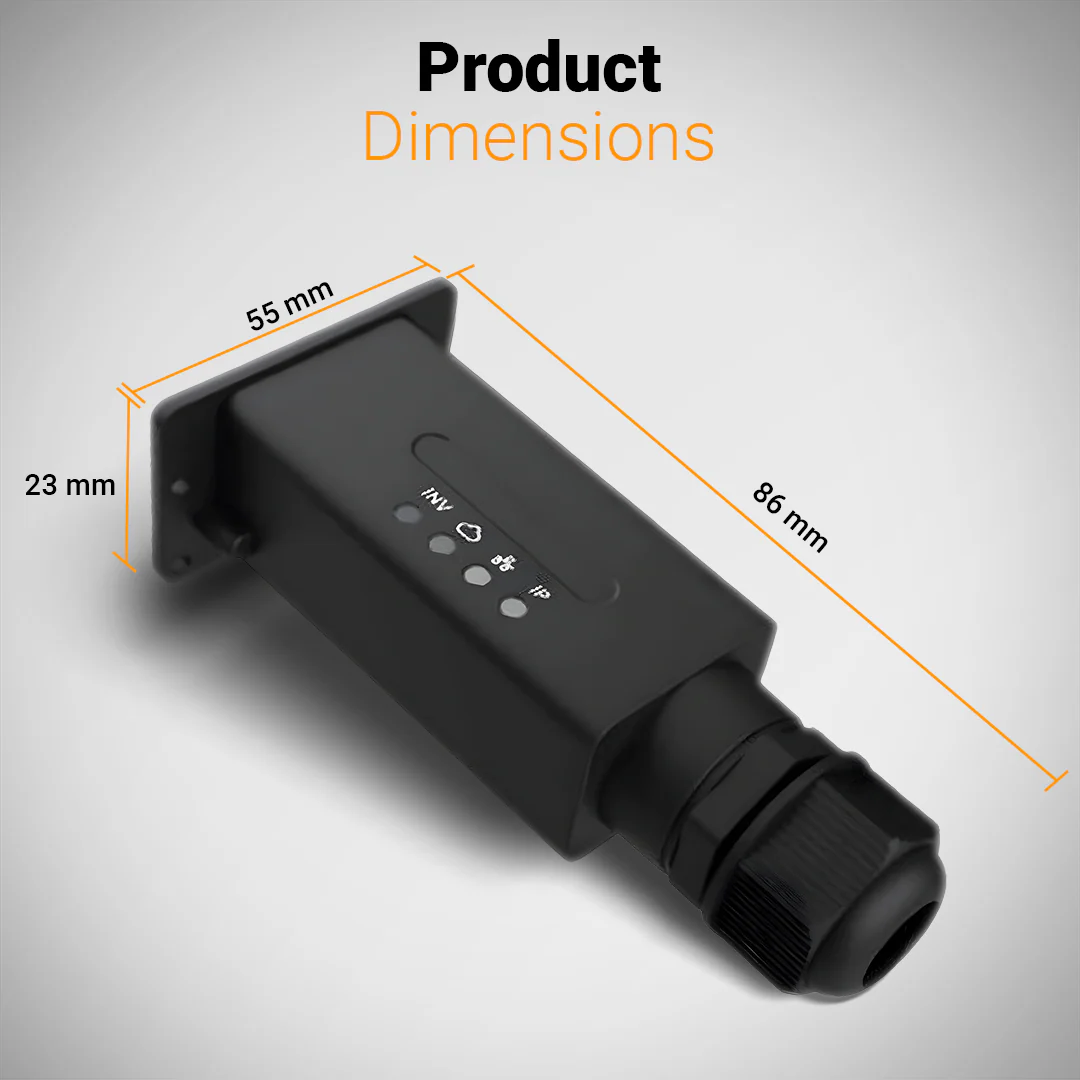

• Size: 86*55*23mm
• Weight: 34g
• Protection Grade: IP65
• Installation: Fixed on the device by screws
• Rated Voltage: 5V
• Maximum Current: 0.25A
• External Interface : HDMI
• Indicator light: 3
• Operating Temperature: -25℃~60℃
• Storage Temperature: -25℃~60℃
• Local Communication Interface: RS485/TTL
• Public Network Access: Wi-Fi
• Baud Rate: 19200bps (Default)
• Working Frequency: 2.412GHz – 2.484GHz
• Maximum Transmission Rate: 72Mbps
• Communication Distance: 100m
• Antenna Gain: 2.5dBi
• Antenna: External Antenna (External of the antenna are optional)
• Watchdog: Software Watchdog + Hardware Watchdog
• Equipment Layer Communication Protocol: Modbus-RTU
• Network Layer Communication Protocol: Modbus-TCP
• Way of Parameter Settings: App/Remote server
• Firmware Update Way: Local tools

Download:

• Download the Datasheet
