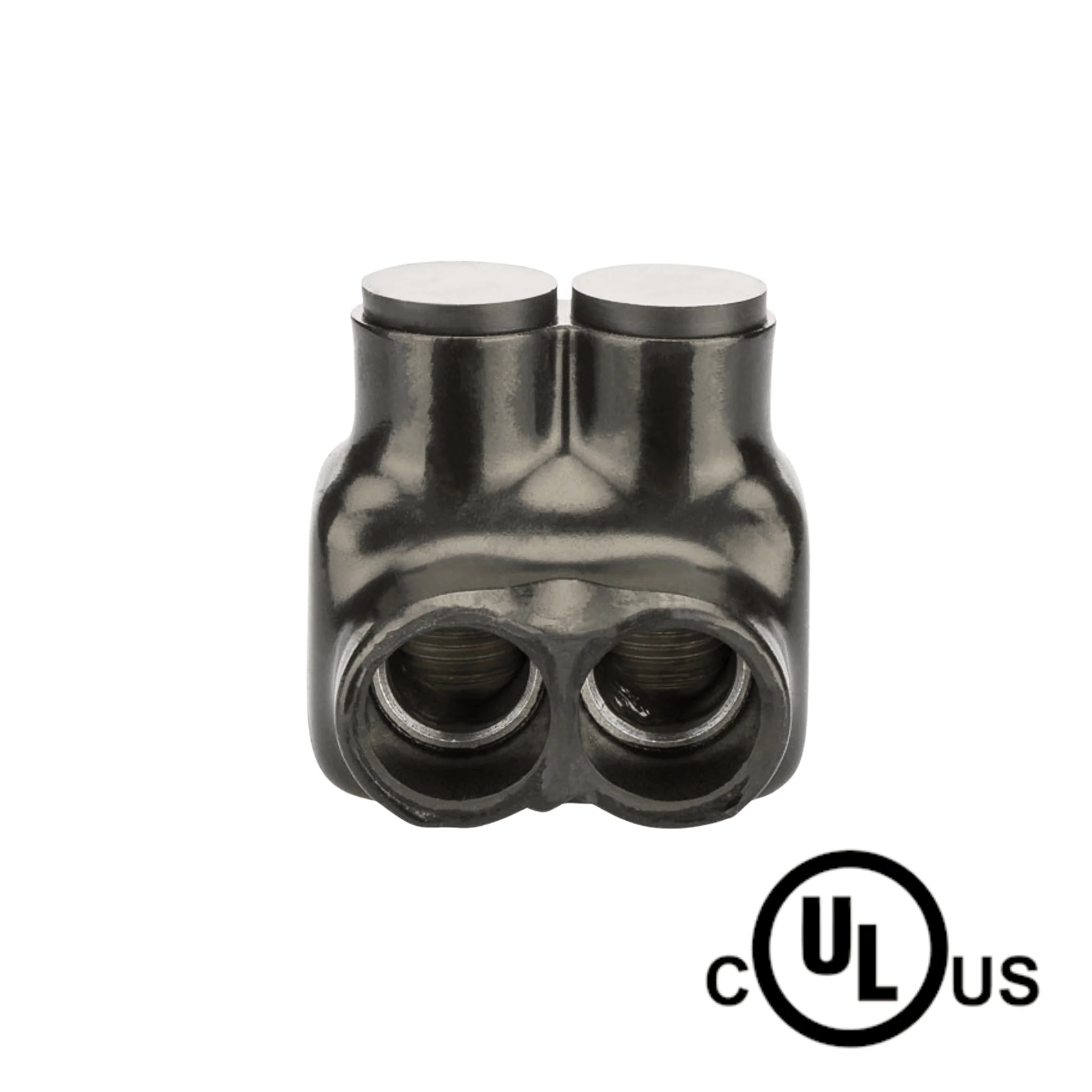

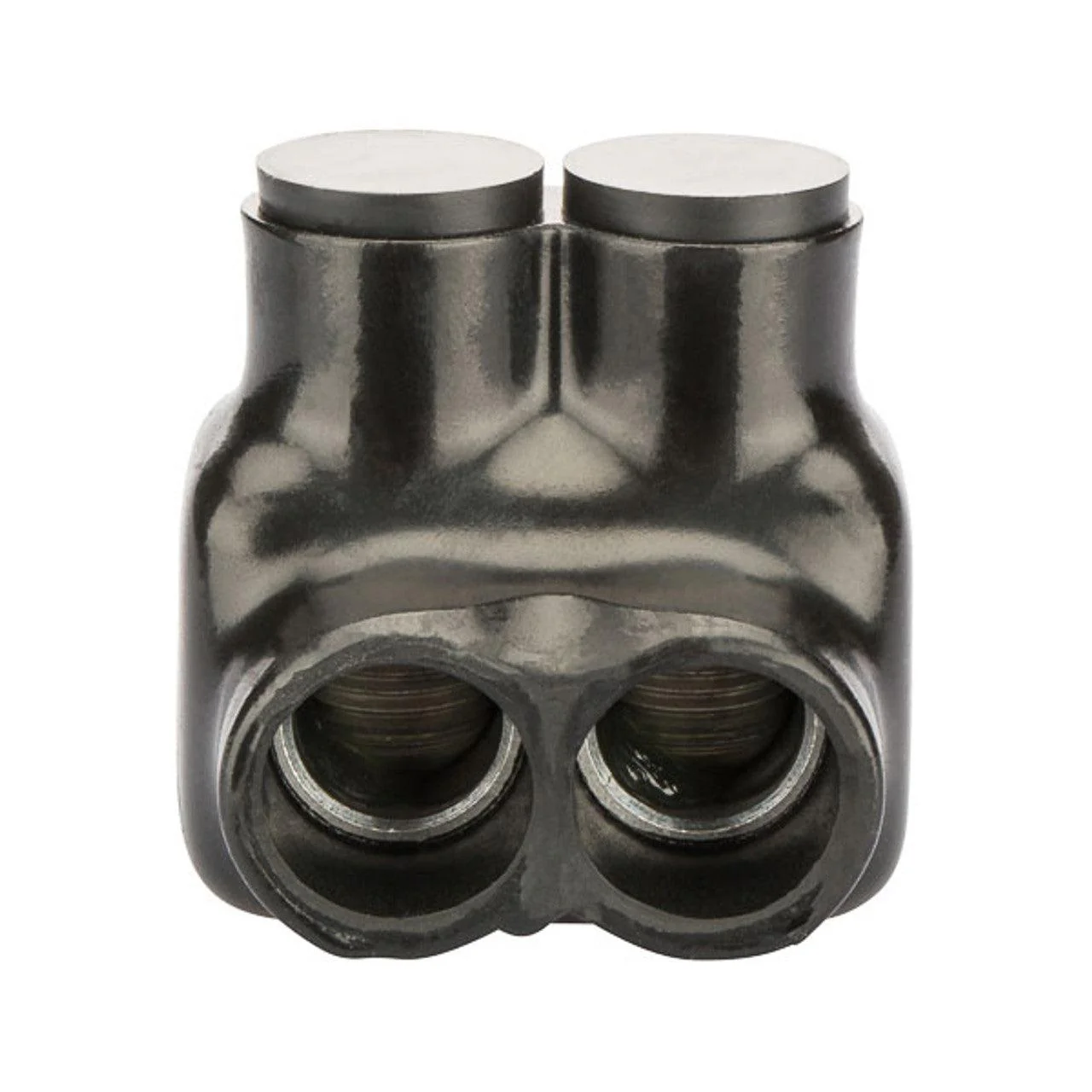

NSi-250 MCM To 6 AWG Black Plastisol 2-Port Insulated Tap Connector - 2 Conductor Dual Entry Splice 2 Set
NSi-250 MCM To 6 AWG Black Plastisol 2-Port Insulated Tap Connector - 2 Conductor Dual Entry Splice 2 Set
Unleash the power of innovation with the Tap Connector Black Insulated 2 Conductor Dual Entry Splice 2 Set. Its dual-entry design allows optional wire entry from either side, offering unparalleled flexibility. Crafted from robust 6061-T6 Aluminum, this connector is not only dual-rated for use with Copper and Aluminum wires but also boasts a high-dielectric Rubber/Vinyl Coating for rugged durability.
Pre-filled with Oxide Inhibitor and marked for easy wire size identification, this connector ensures hassle-free installations and easy re-entry for changes or troubleshooting. With ANSI C119.4 & cULus 486b Listings and UL/CSA Certification through 750MCM, it's the epitome of reliability, ready to handle cables rated for use with 194°F (90°C). Elevate your electrical connections with the Tap Connector – where convenience and cutting-edge design converge for optimal performance.

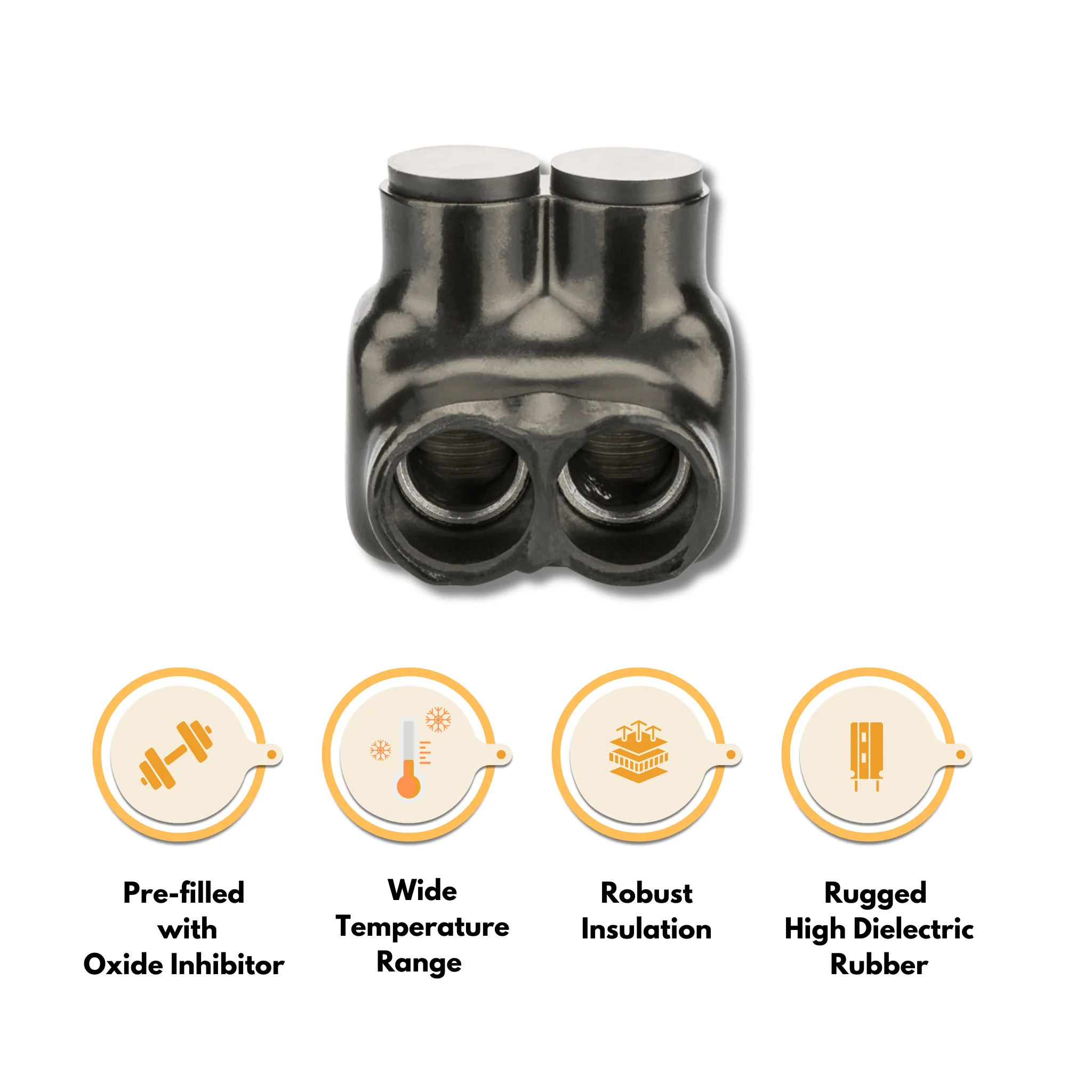

Key Features:
- Flexible Wire Options: With optional wire entry from either side, this connector adapts to your wiring needs, providing unmatched flexibility for versatile installations.
- Durable Dual Rating: Crafted from 6061-T6 Aluminum, the CU9AL dual-rated design ensures durability with both Copper and Aluminum wires, guaranteeing reliable performance.
- Robust Insulation: The high-dielectric Rubber/Vinyl Coating provides rugged insulation, safeguarding the connector and ensuring long-lasting protection in demanding environments.
- Efficient Oxide Prevention: Pre-filled with Oxide Inhibitor, this connector ensures smooth conductivity and easy re-entry, simplifying maintenance tasks and reducing the risk of oxidation.
- User-Friendly Re-entry: Designed for easy re-entry, this connector facilitates hassle-free adjustments, inspections, or troubleshooting, ensuring a seamless and efficient maintenance process.
- Smart Marking for Identification: Plugs marked with the Connector Max Wire Size simplify identification, making it easy to choose the right connector for your specific wiring requirements.
- Wide Temperature Range and Certification: With a temperature range of –49°F to 194°F (–45° to 90°C), and ANSI C119.4 & cULus 486b Listings, this connector is certified and rated for reliable use across diverse conditions, ensuring peace of mind in various applications.

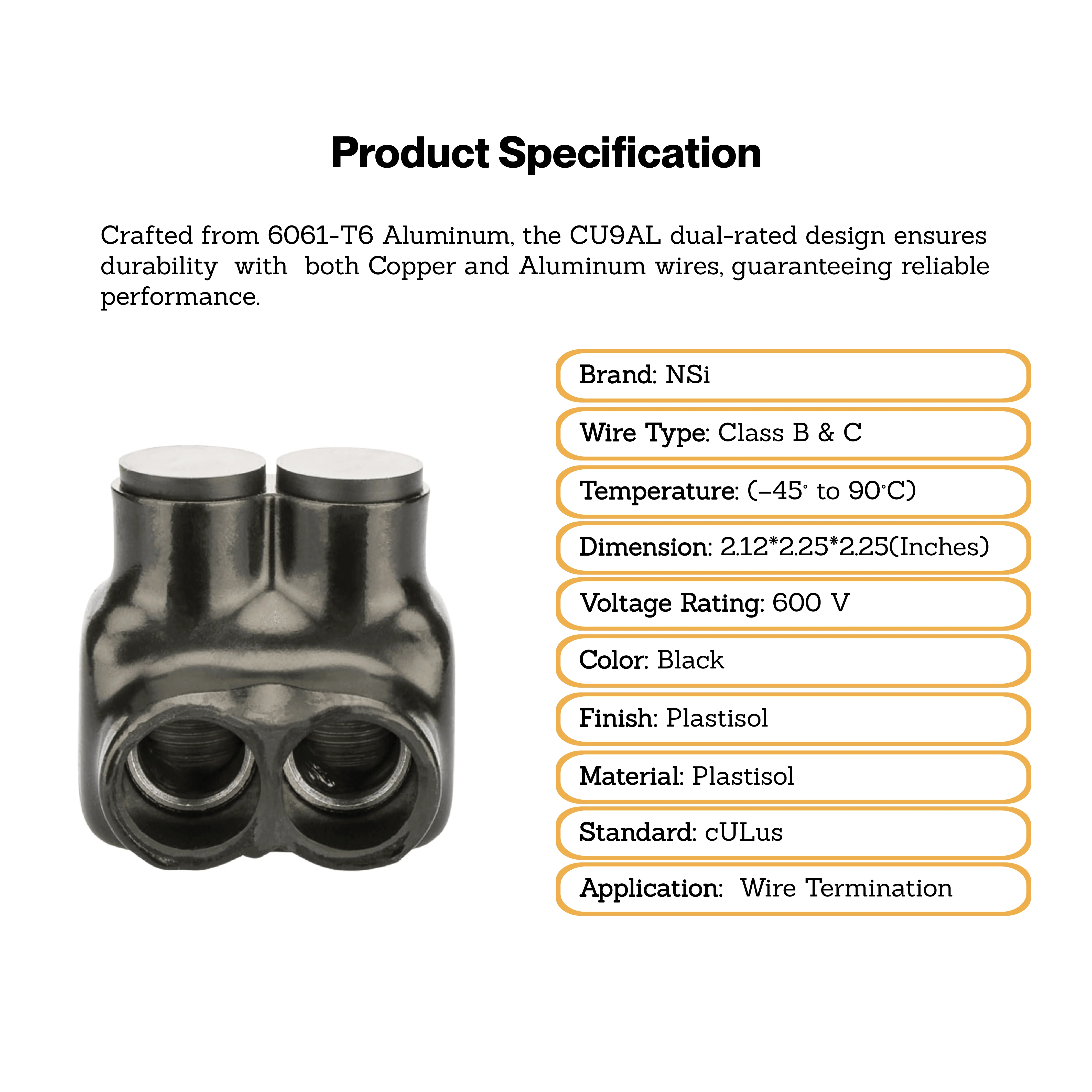

Product specification
- Temperature Range: –49°F to 194°F (–45° to 90°C)
- Certified: ANSI C119.4 & cULus 486b Listed thru 750MCM, UL/CSA Certified through 750MCM size
- Brand Name: NSi
- Type: Multi Cable
- Wire Size: 250 MCM-6 AWG
- Number Of Conductors: 2
- Dimensions: L=2.12 - W=2.25 - H=2.25(Inches)
- Temperature Rating: 90° C
- Voltage Rating: 600 V
- Color: Black
- Environmental Conditions: 90 C
- Finish: Plastisol
- Material: Plastisol
- Standard: cULus
- Wire Type: Class B & C
- Application: Wire Termination
- Prop 65: California residents see Prop 65 info here
- Product Advertisement (polaris_adv_ad_LR_feb_022013.pdf)Catalog Page (14_it_polaris17.pdf) Technical Drawing (IT SERIES.pdf) Installation Instructions - Polaris Black and Vision Tap (Installation Instructions - Polaris Black and Vision Tap.pdf)
