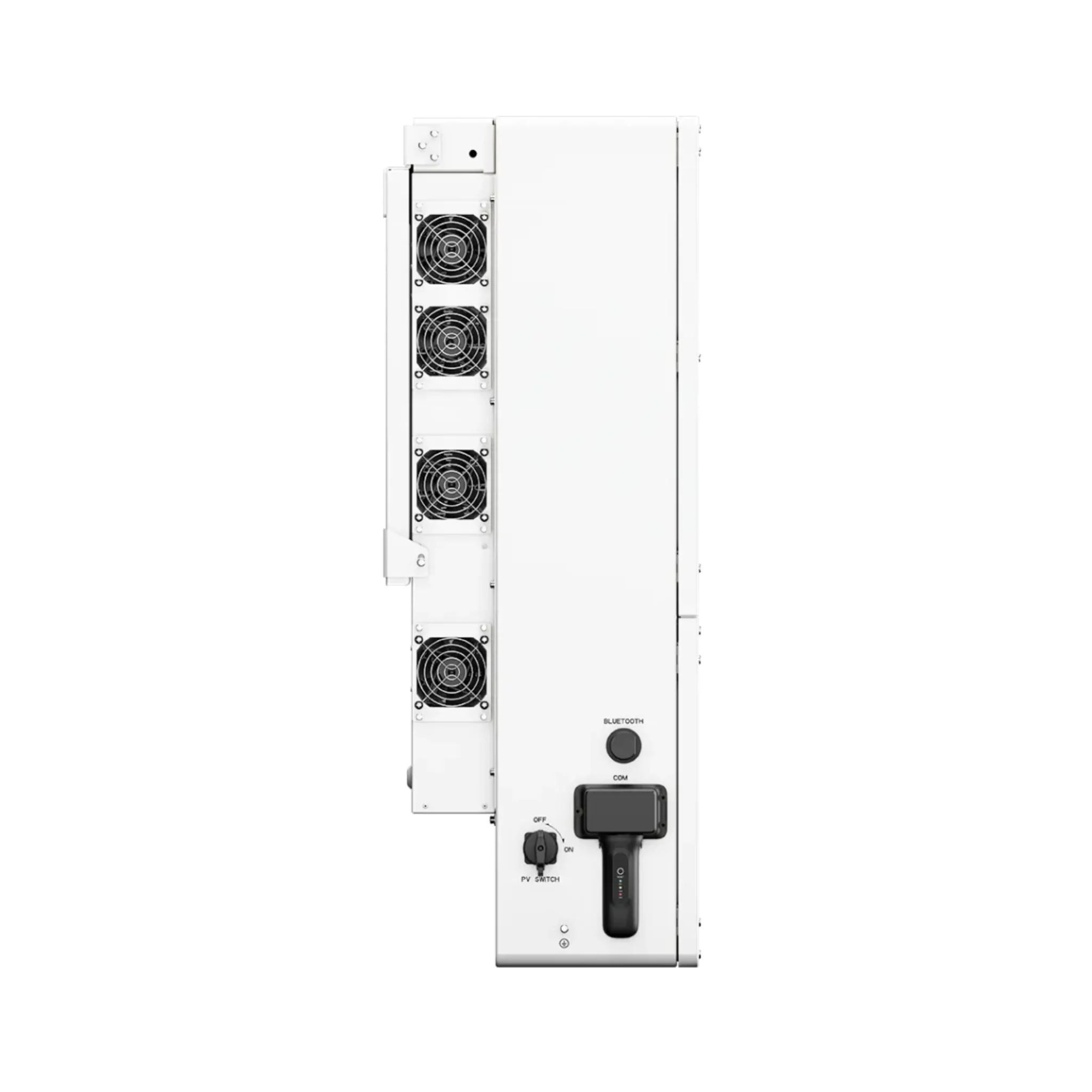

Solis S6-EH3P60K-NV-YD-H-US Three-Phase Hybrid Energy Storage Solar Power Inverter – 60kVA | 480VAC| Commercial & Industrial Solar + Battery System
Solis S6-EH3P60K-NV-YD-H-US Three-Phase Hybrid Energy Storage Solar Power Inverter – 60kVA | 480VAC| Commercial & Industrial Solar + Battery System
DOWNLOADS:

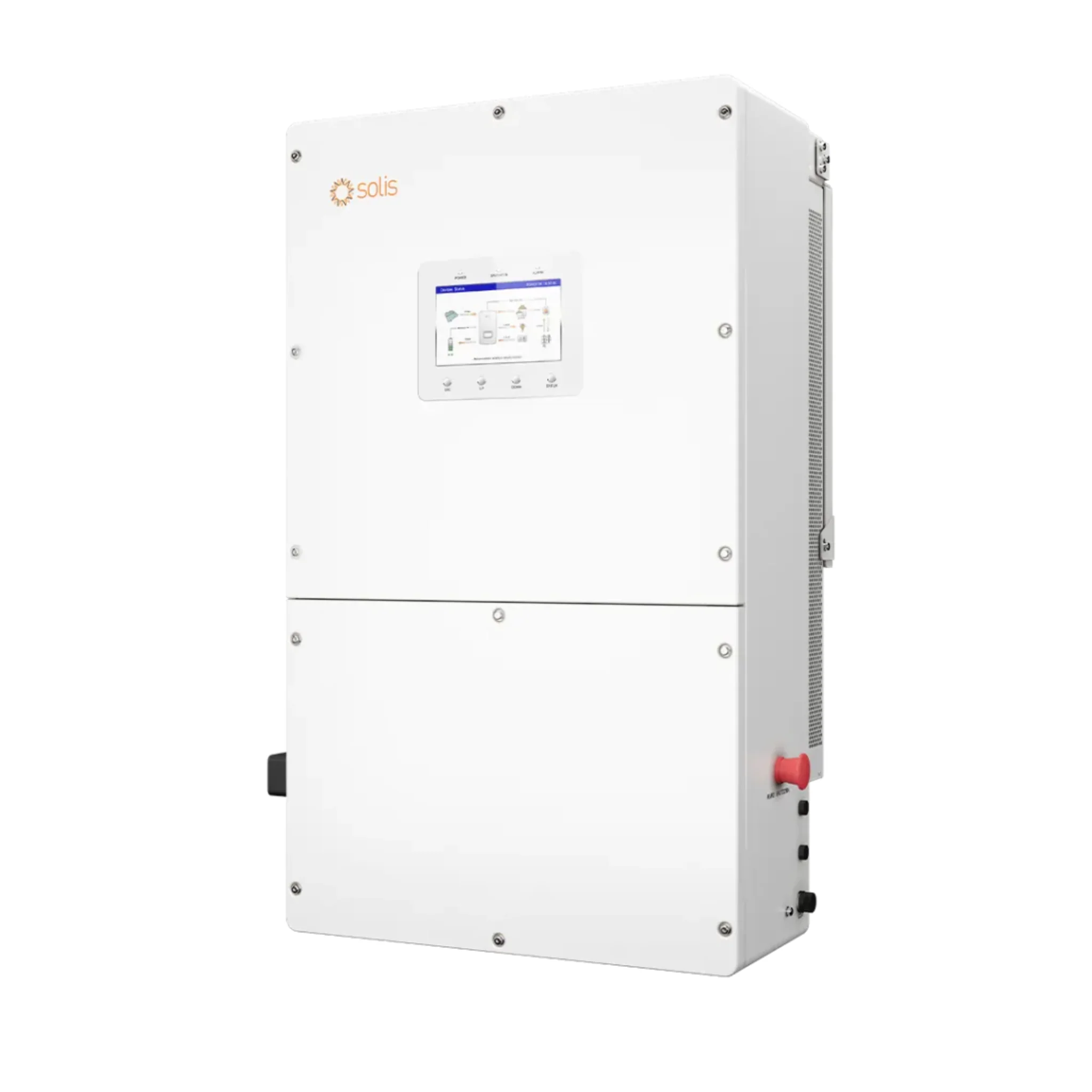

The Solis S6-EH3P60K-NV-YD-H-US is a next-generation 60kVA three-phase hybrid inverter designed for commercial, industrial, and micro-grid solar + storage systems. Engineered for Canadian businesses seeking reliable PV + battery power, grid support, and seamless backup, this unit delivers industry-leading performance, remote monitoring, advanced battery management, and 480VAC three-phase output.
KEY FEATURES:
-
60kVA / 60kW hybrid inverter for commercial solar + storage
-
480V three-phase output – ideal for commercial & industrial facilities
-
Up to 200% DC/AC ratio – maximize solar generation & battery charging
-
160% peak overload (2 seconds) for heavy startup loads
-
Supports 2 battery stacks – 70A each (140A parallel)
-
Real-time battery monitoring & healing features to extend battery life
-
Peak shaving, self-use, off-grid, generator & backup modes
-
Automatic failover (<10ms) for uninterrupted power supply
-
Remote monitoring & firmware updates via SolisCloud
-
UL1741SB & CSA Certified – Fully compliant for use in Canada
-
Type 4X enclosure for harsh weather environments

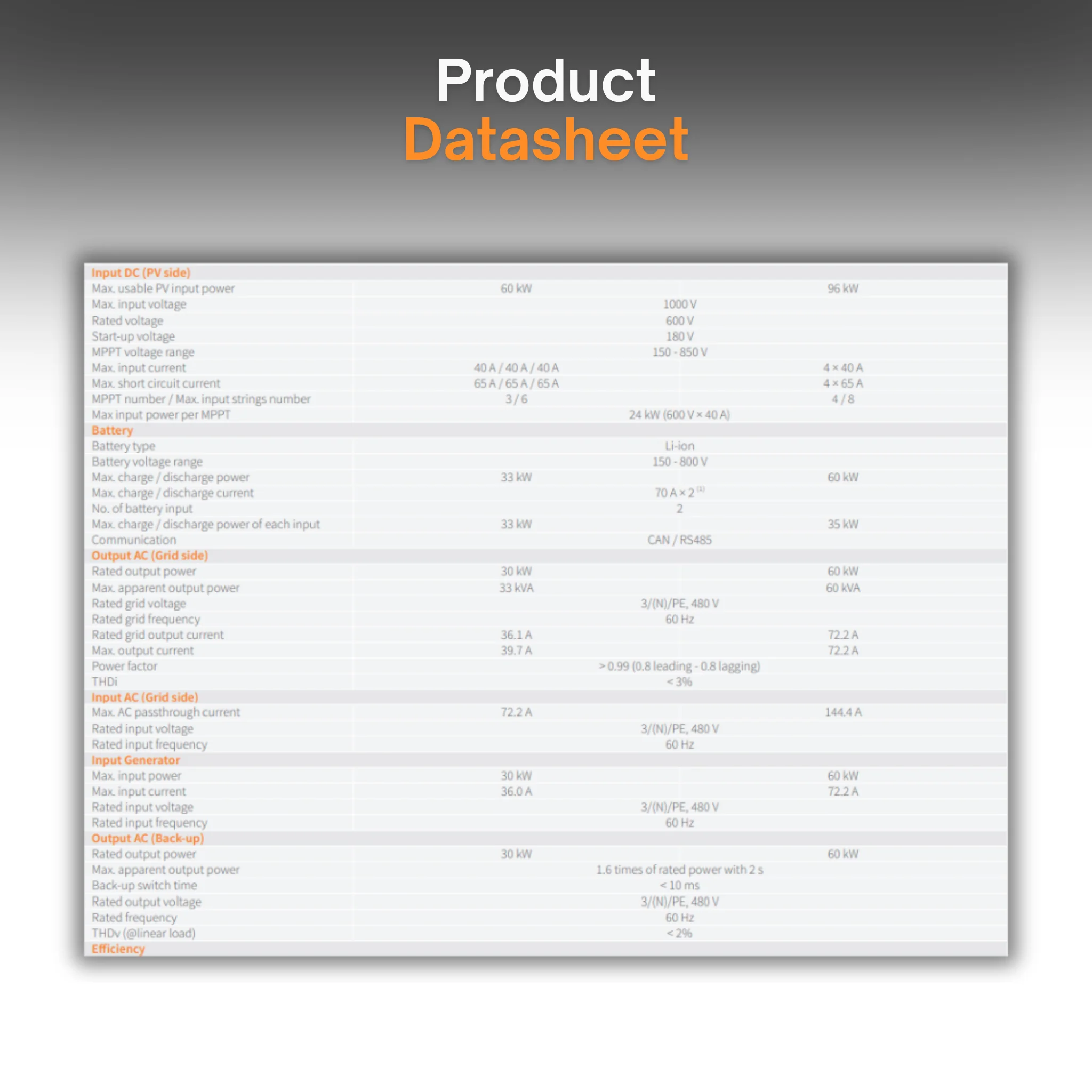

TECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| Power Rating | 60kW / 60kVA |
| Grid Voltage | 480VAC 3-phase |
| Max PV Input | 96kW |
| MPPT Inputs | 4 MPPT / 8 strings |
| Battery Voltage Range | 150 – 800V DC |
| Max Charge/Discharge Current | 70A × 2 (140A parallel) |
| Efficiency | 97.8% max / 97% CEC |
| Backup Transfer Time | <10ms |
| Protection Rating | NEMA Type 4X |
| Operating Temp | -25°C to 60°C |
| Certifications | UL1741SB, IEEE1547-2018, CAN/CSA |
Original: $64,137.00
-70%$64,137.00
$19,241.10
