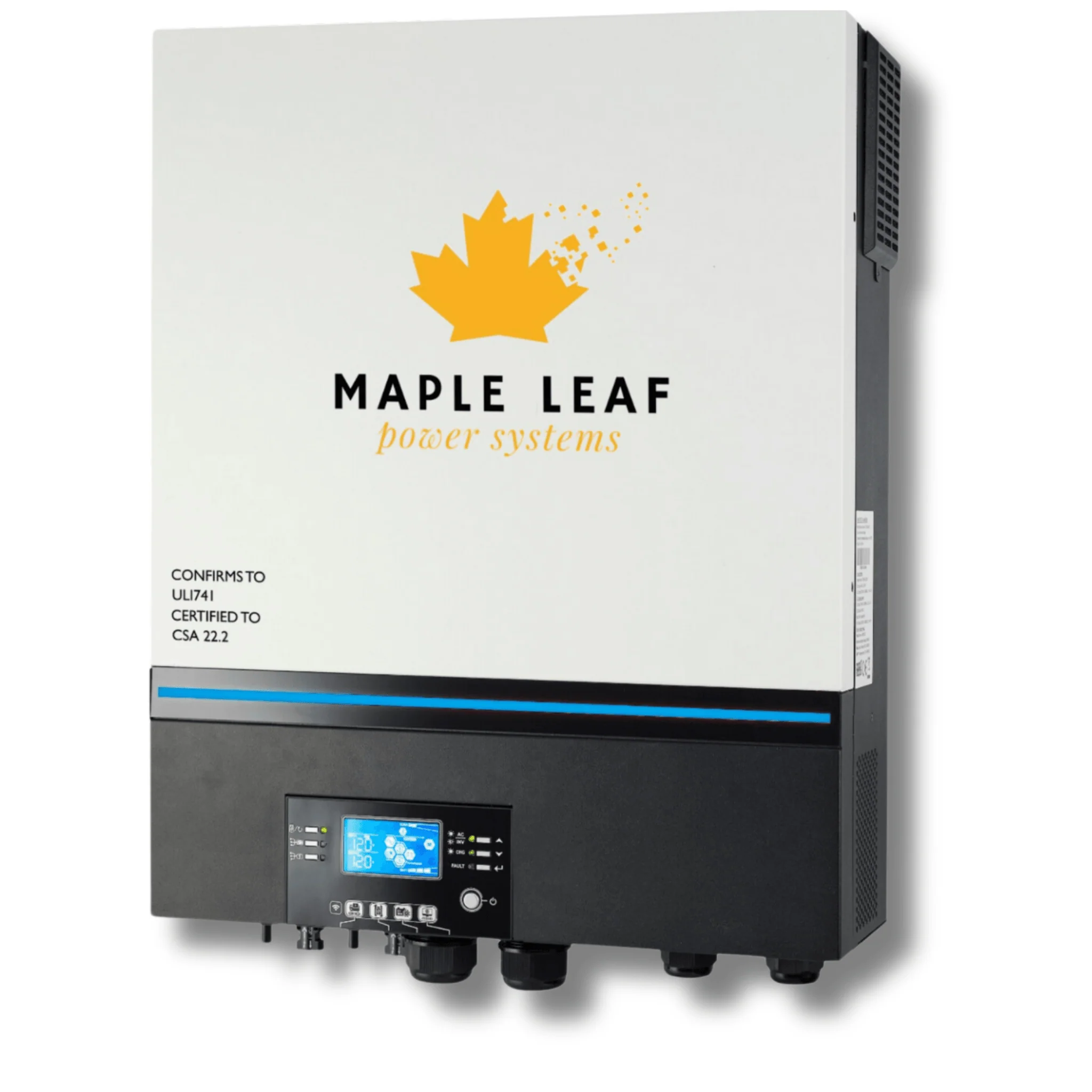

Maple Leaf 6500EX - 48 Off Grid Solar Inverter - 500 VOC | 48v 110vac | 2 Units For 220vac | Dual MPPT Solar Charger 120A | CSA Approved

Maple Leaf 6500EX - 48 Off Grid Solar Inverter - 500 VOC | 48v 110vac | 2 Units For 220vac | Dual MPPT Solar Charger 120A | CSA Approved

Download

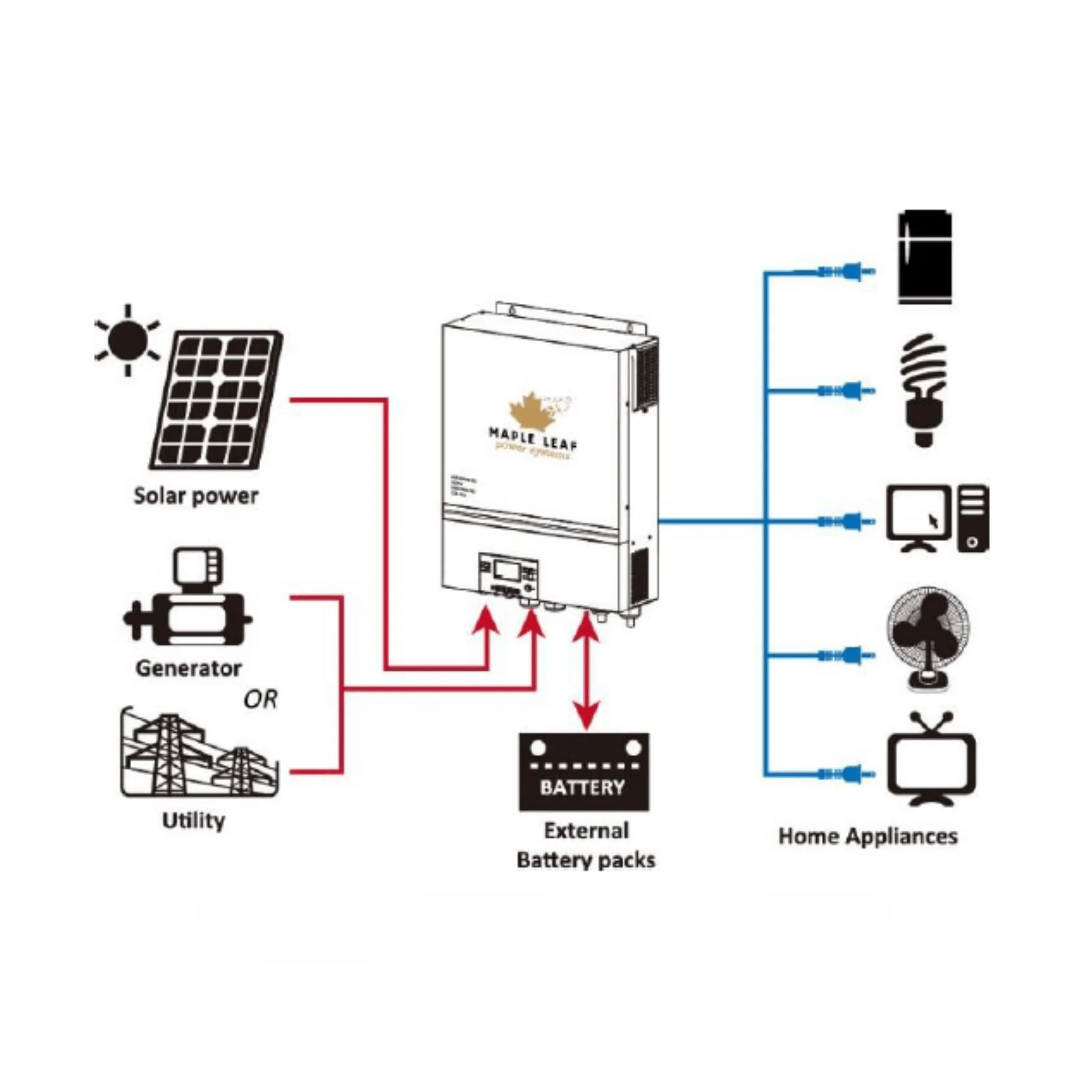

 The 6500EX-48 is the easiest way to get started on your next off-grid projects. With the only all-in-one, CSA-certified inverter. The 6500EX-48 will Act as your main hub for all your off-grid needs. Simply plug your inputs, batteries, and optional AC inputs (i.e. the grid or a generator) and get your off-grid on baby!

Features:

  • UL1741 and CSA Compliance: The Maple Leaf 6500EX - 48 Off Grid Solar Inverter is certified to meet UL1741 and CS22.2 (CSA) standards, ensuring its safety and reliability in off-grid solar applications.
  • High PV Input Voltage: With a high PV input voltage of up to 500V (VOC), this inverter can efficiently handle power from solar panels, maximizing energy conversion.
  • Customizable RGB LED Setting: Users can customize the RGB LED display to indicate different operation modes, providing visual feedback on the status of the inverter.
  • High Output Power: The inverter offers a maximum output power of 6.5KW at 48V, delivering a pure sine wave output at 120V, suitable for powering various household appliances and devices.
  • Parallel Support: It supports parallel connection of up to 6 units, allowing for increased power output and flexibility in single-phase, split-phase, or three-phase configurations.
  • Built-in Features: Includes a built-in parallel kit for easy installation and operation, as well as a built-in genset starter dry contact for seamless integration with backup generators.
  • Advanced Monitoring and Control: Equipped with a built-in WIFI transmitter, users can monitor system data and adjust settings remotely using smartphones, enhancing convenience and control.
  • Comprehensive Programming Options: Offers comprehensive programming options, including timer control on AC output and charging, adjustable Bulk/Float charging voltage, and equalization charge for optimal battery management.

    Product Specification

    • Safety Certification: CSA 22.2 (certified by TUV)
    • Operating Temperature Range: -10ÂșC to 50ÂșC
    • Storage Temperature: -15ÂșC~60ÂșC
    • Humidity: 5% to 95% Relative Humidity (Non-condensing)

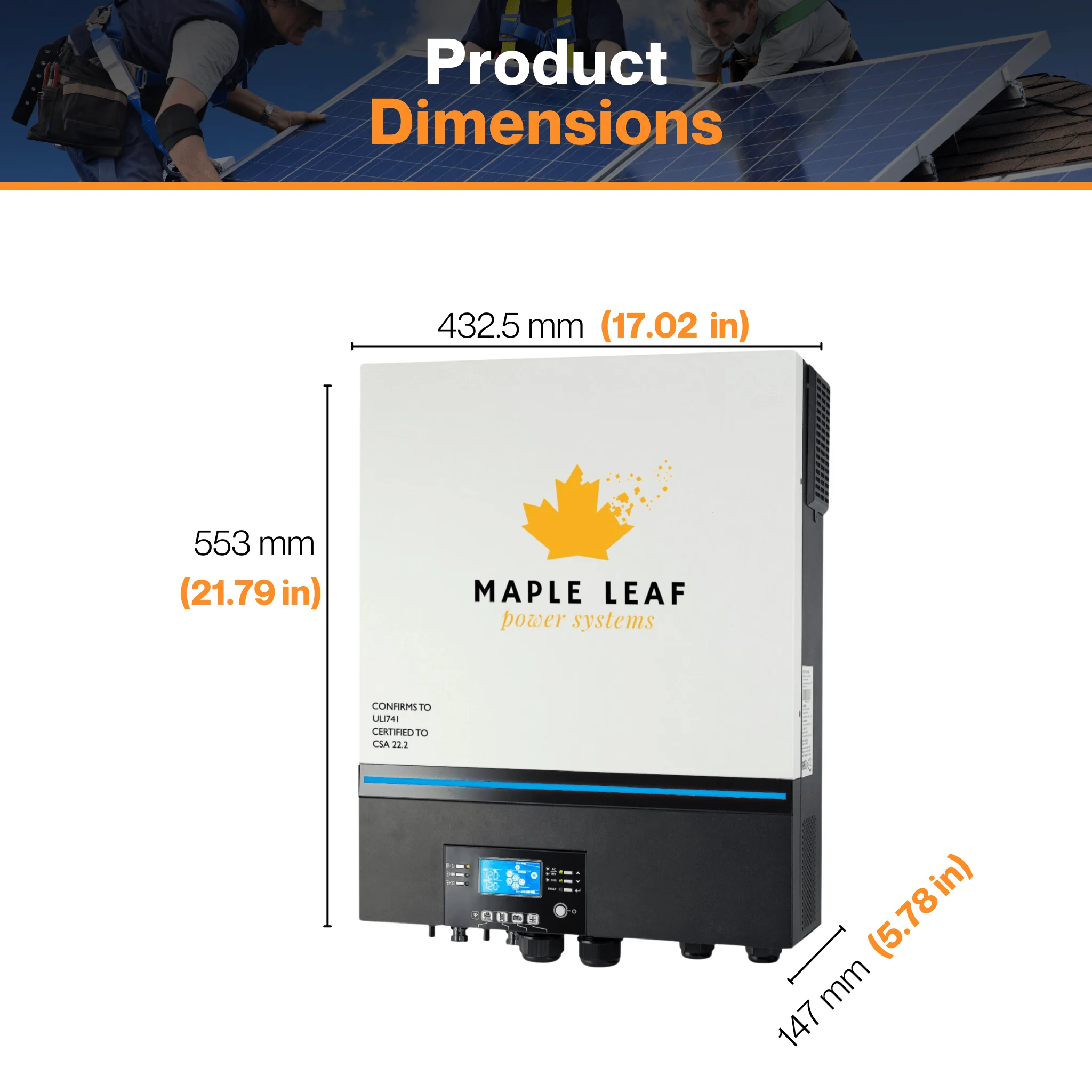

    • Dimension(D*W*H)mm: 147.4*432.5*553.6mm
    • Net Weight(Kg): 18.4Kg
    $5,276.00
    Maple Leaf 6500EX - 48 Off Grid Solar Inverter - 500 VOC | 48v 110vac | 2 Units For 220vac | Dual MPPT Solar Charger 120A | CSA Approved—
    $5,276.00
    Product image 1
    Product image 2
    Product image 3
    Product image 4
    Product image 5
    Product image 6
    Product image 7
    Product image 8

    Description

    Download

     The 6500EX-48 is the easiest way to get started on your next off-grid projects. With the only all-in-one, CSA-certified inverter. The 6500EX-48 will Act as your main hub for all your off-grid needs. Simply plug your inputs, batteries, and optional AC inputs (i.e. the grid or a generator) and get your off-grid on baby!

    Features:

    • UL1741 and CSA Compliance: The Maple Leaf 6500EX - 48 Off Grid Solar Inverter is certified to meet UL1741 and CS22.2 (CSA) standards, ensuring its safety and reliability in off-grid solar applications.
    • High PV Input Voltage: With a high PV input voltage of up to 500V (VOC), this inverter can efficiently handle power from solar panels, maximizing energy conversion.
    • Customizable RGB LED Setting: Users can customize the RGB LED display to indicate different operation modes, providing visual feedback on the status of the inverter.
    • High Output Power: The inverter offers a maximum output power of 6.5KW at 48V, delivering a pure sine wave output at 120V, suitable for powering various household appliances and devices.
    • Parallel Support: It supports parallel connection of up to 6 units, allowing for increased power output and flexibility in single-phase, split-phase, or three-phase configurations.
    • Built-in Features: Includes a built-in parallel kit for easy installation and operation, as well as a built-in genset starter dry contact for seamless integration with backup generators.
    • Advanced Monitoring and Control: Equipped with a built-in WIFI transmitter, users can monitor system data and adjust settings remotely using smartphones, enhancing convenience and control.
    • Comprehensive Programming Options: Offers comprehensive programming options, including timer control on AC output and charging, adjustable Bulk/Float charging voltage, and equalization charge for optimal battery management.

      Product Specification

      • Safety Certification: CSA 22.2 (certified by TUV)
      • Operating Temperature Range: -10ÂșC to 50ÂșC
      • Storage Temperature: -15ÂșC~60ÂșC
      • Humidity: 5% to 95% Relative Humidity (Non-condensing)
      • Dimension(D*W*H)mm: 147.4*432.5*553.6mm
      • Net Weight(Kg): 18.4Kg
