NEP PVG-O Rapid Shutdown Kit | Solar Rapid Shutdown Enclosure, IP65 Rated, Transmitter

Downloads:

• Datasheet
• Manual
• Certification

Ensure full code compliance and enhanced safety with the NEP PVG-O Gateway + Transmitter Enclosure. This solution enables seamless Rapid Shutdown (RSD) functionality when using non-NEP inverters. It is suitable for residential, commercial, and industrial solar installations.

---

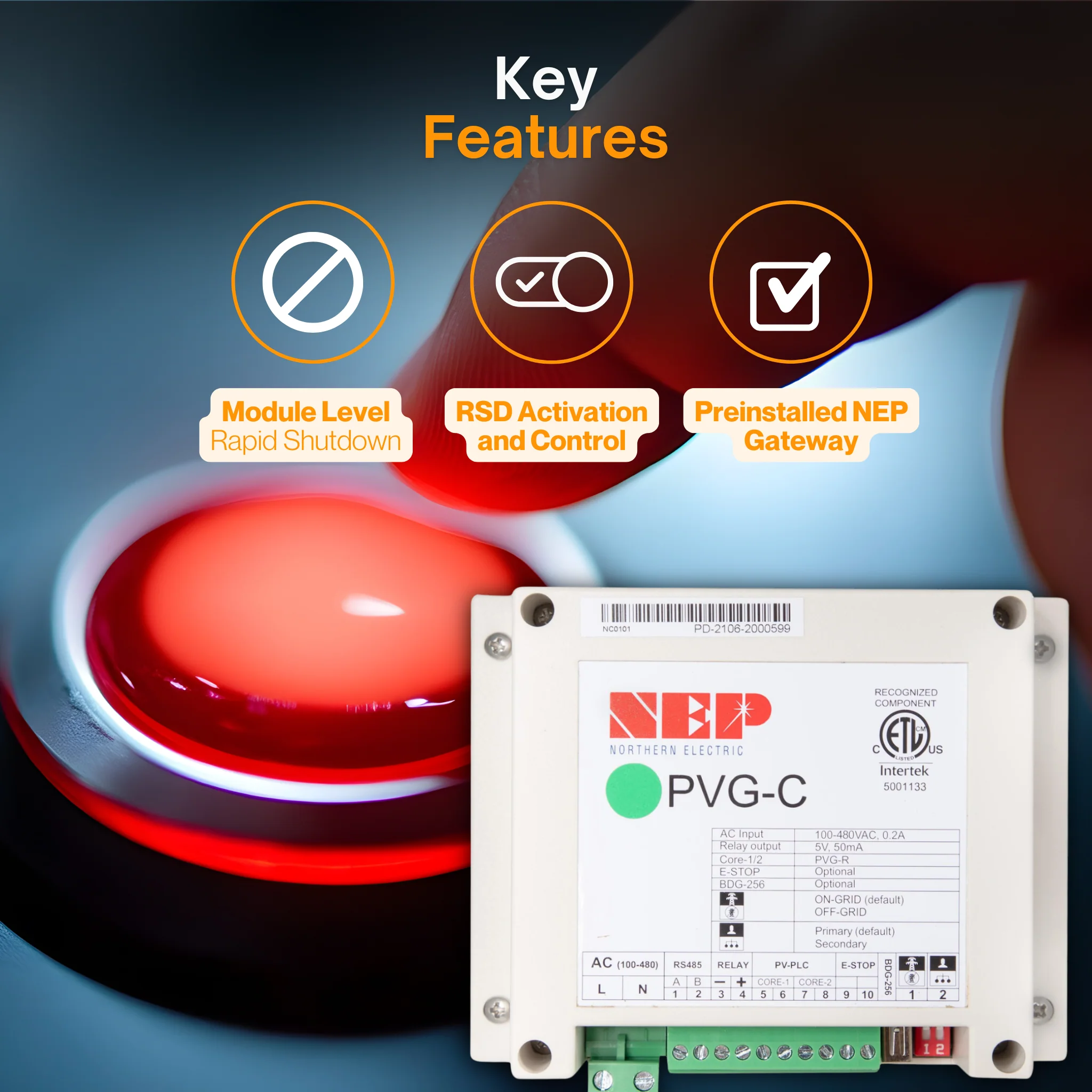

Key Benefits

• Integrated NEP Rapid Shutdown Transmitter/Controller
  Provides reliable and safe module-level shutdown in compliance with NEC requirements.

• Pre-installed NEP Gateway
  Simplifies setup, reduces installation time, and streamlines commissioning.

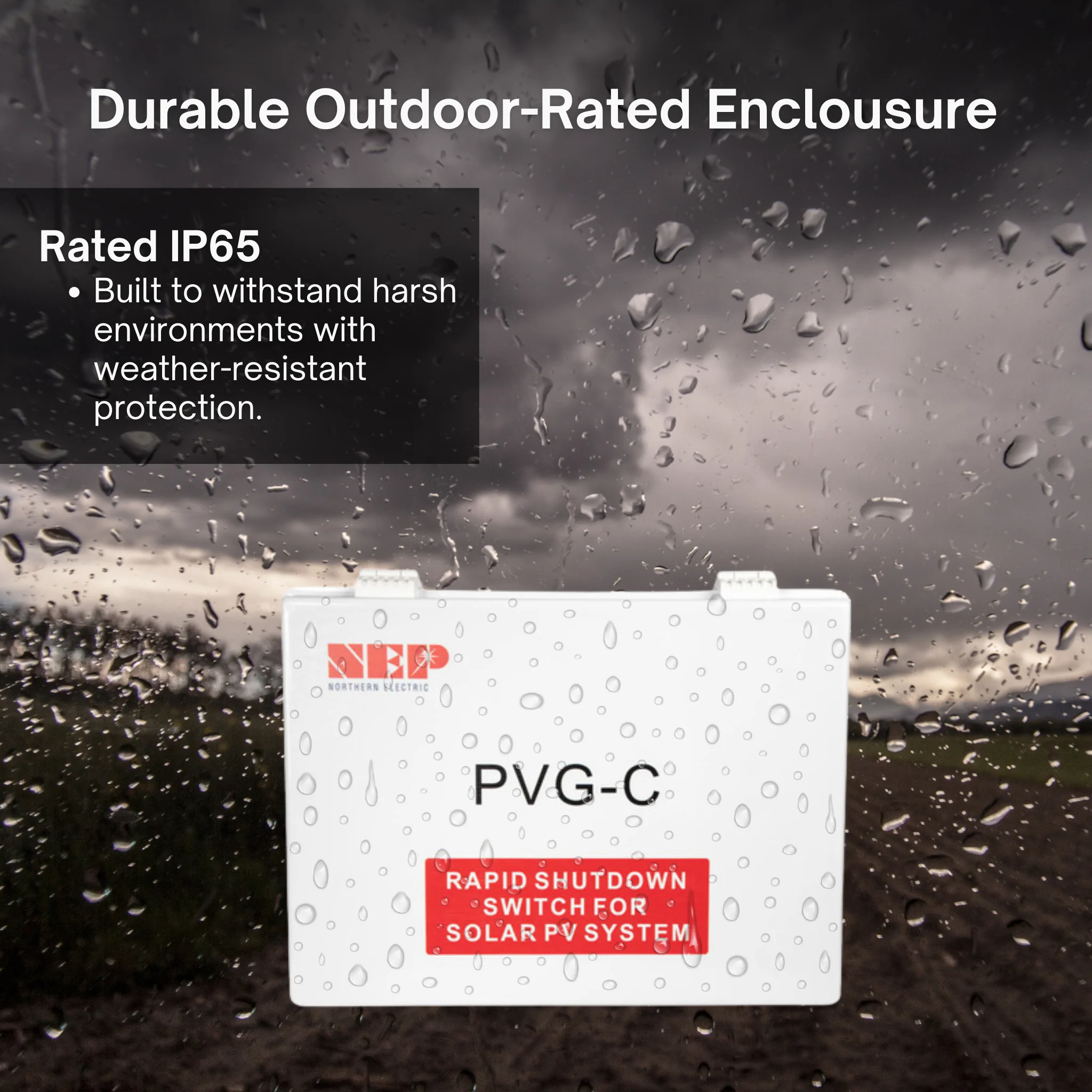

• Durable Outdoor Enclosure (IP65 Rated)
  Designed to withstand harsh environmental conditions for long-term reliability.

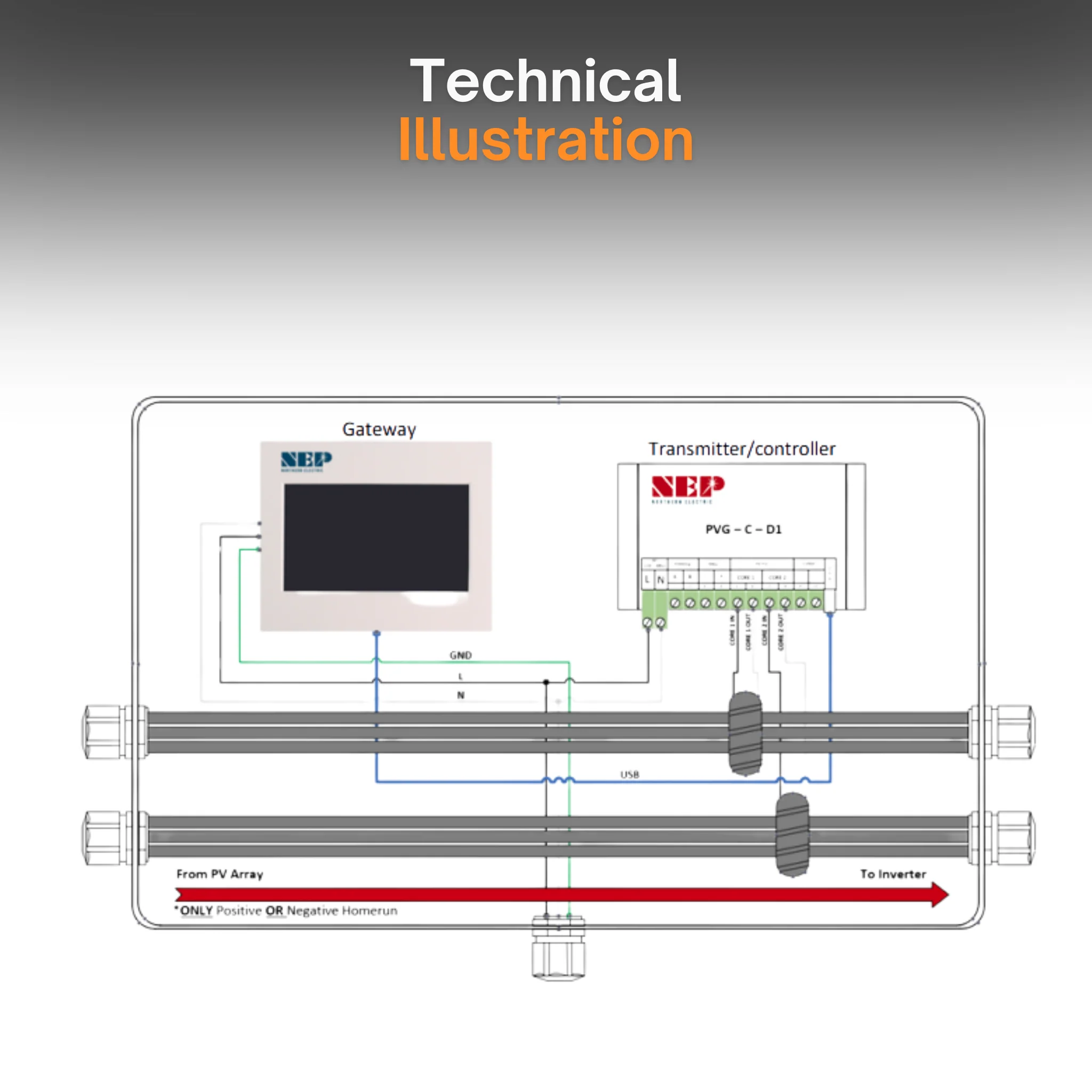

• Power Line Communication (PLC) with Dual CTs
  Ensures stable communication between RSD devices and the gateway with accurate current monitoring.

• Centralized Data Collection and Monitoring
  Aggregates system performance and status reporting via NEP’s BDG-256 monitoring platform.

• Rapid Shutdown Activation and Control
  Delivers fast and reliable shutdown signal transmission to module-level devices.

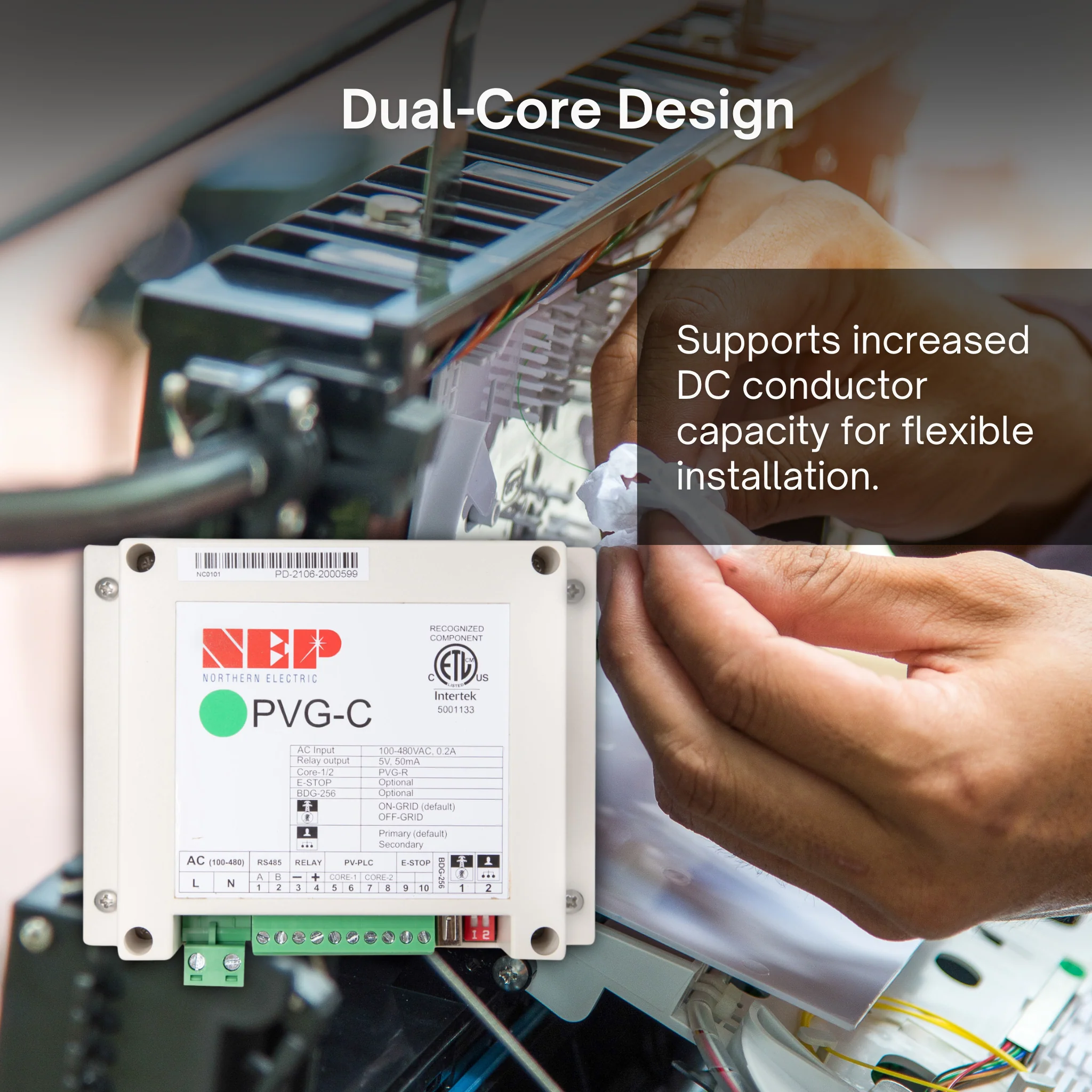

• Dual-Core Design for Larger Installations
  Accommodates increased DC conductor capacity, allowing greater installation flexibility.

• Scalable Deployment
  One PVG-O per inverter is recommended for best performance and compatibility.

---

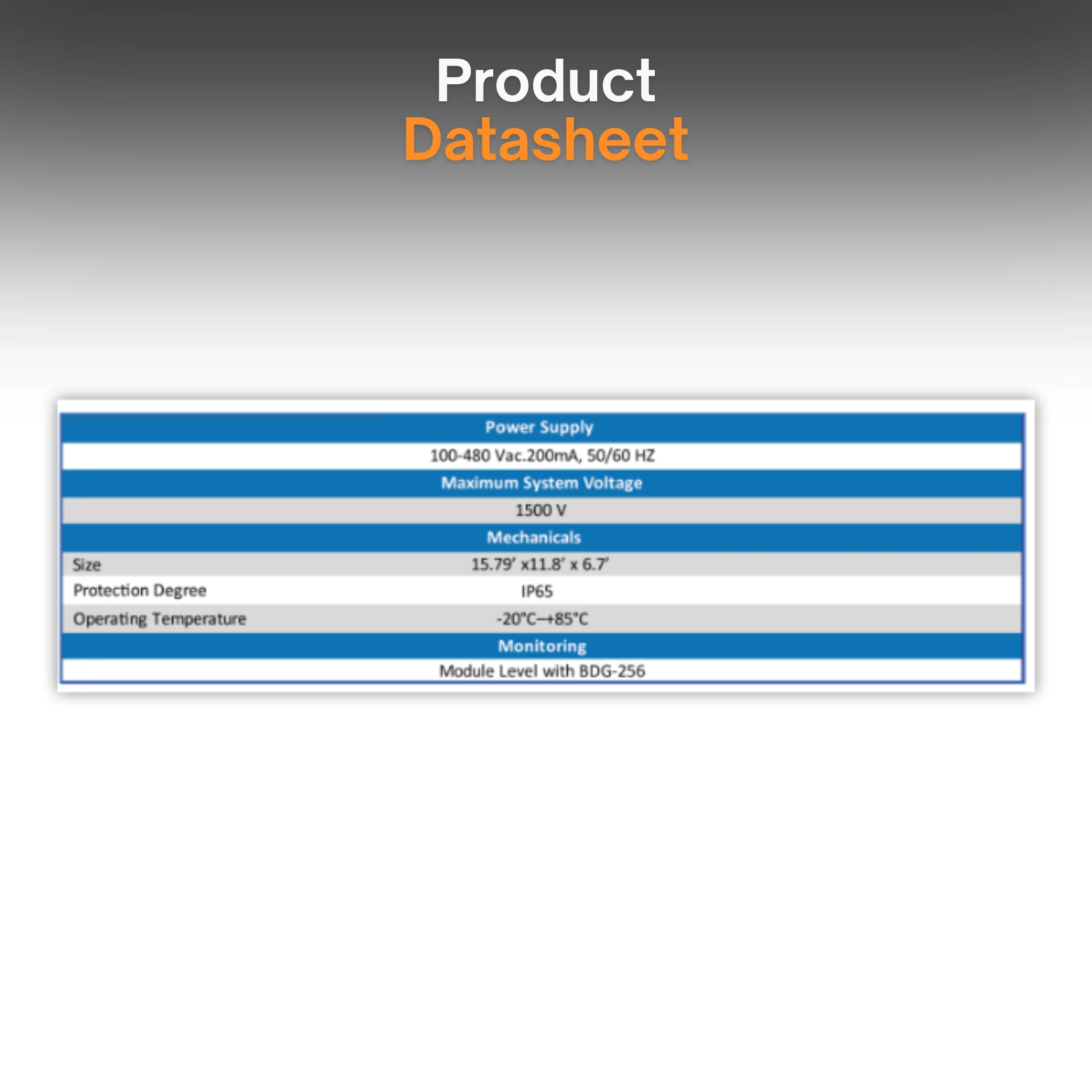

Technical Specifications

• Power Supply: 100–480 Vac, 200 mA, 50/60 Hz

• Maximum System Voltage: 1500 V

• Operating Temperature: -20°C to +85°C

• Protection Rating: IP65 (weatherproof enclosure)

• Dimensions: 15.79" × 11.8" × 6.7"

• Monitoring: Module-level with BDG-256

---

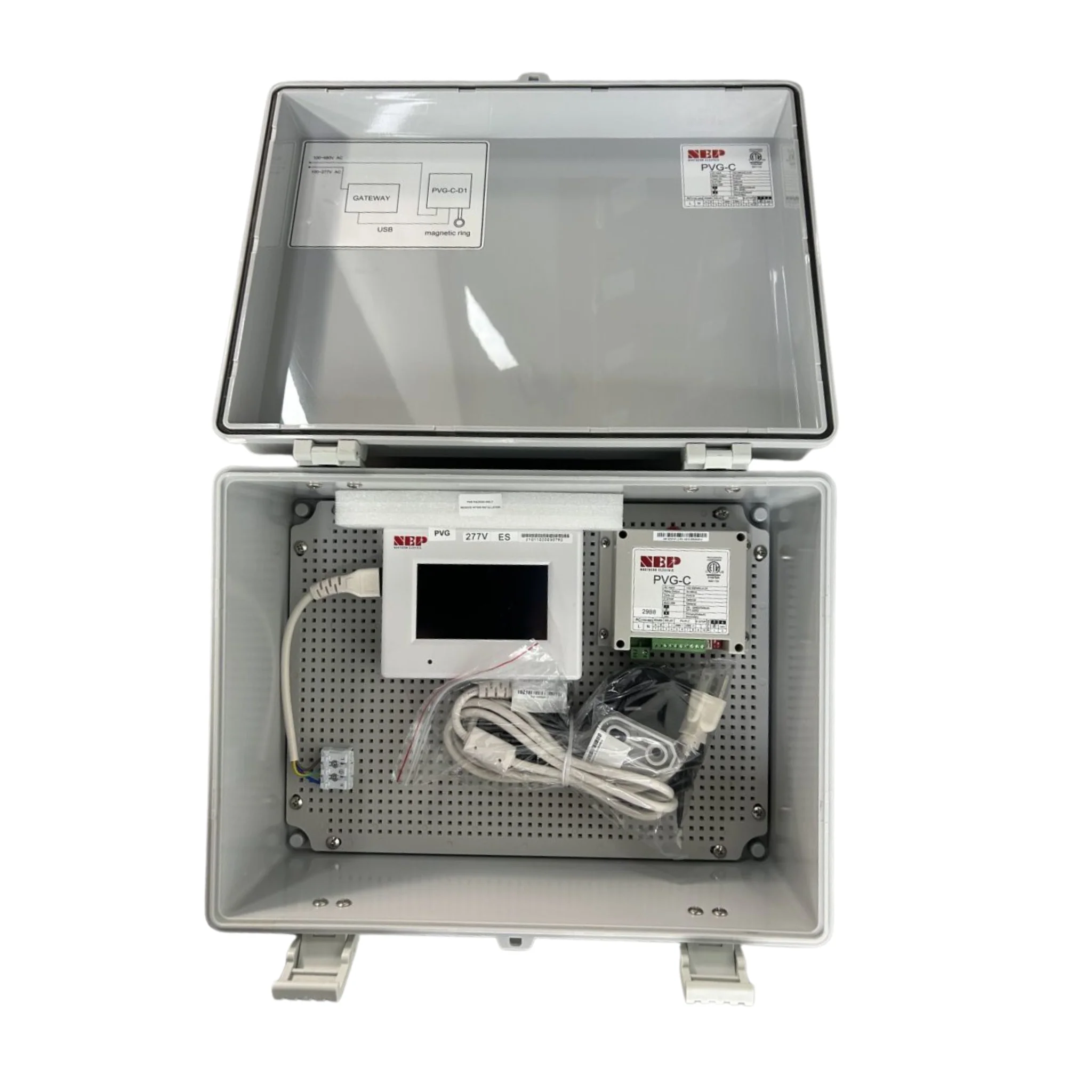

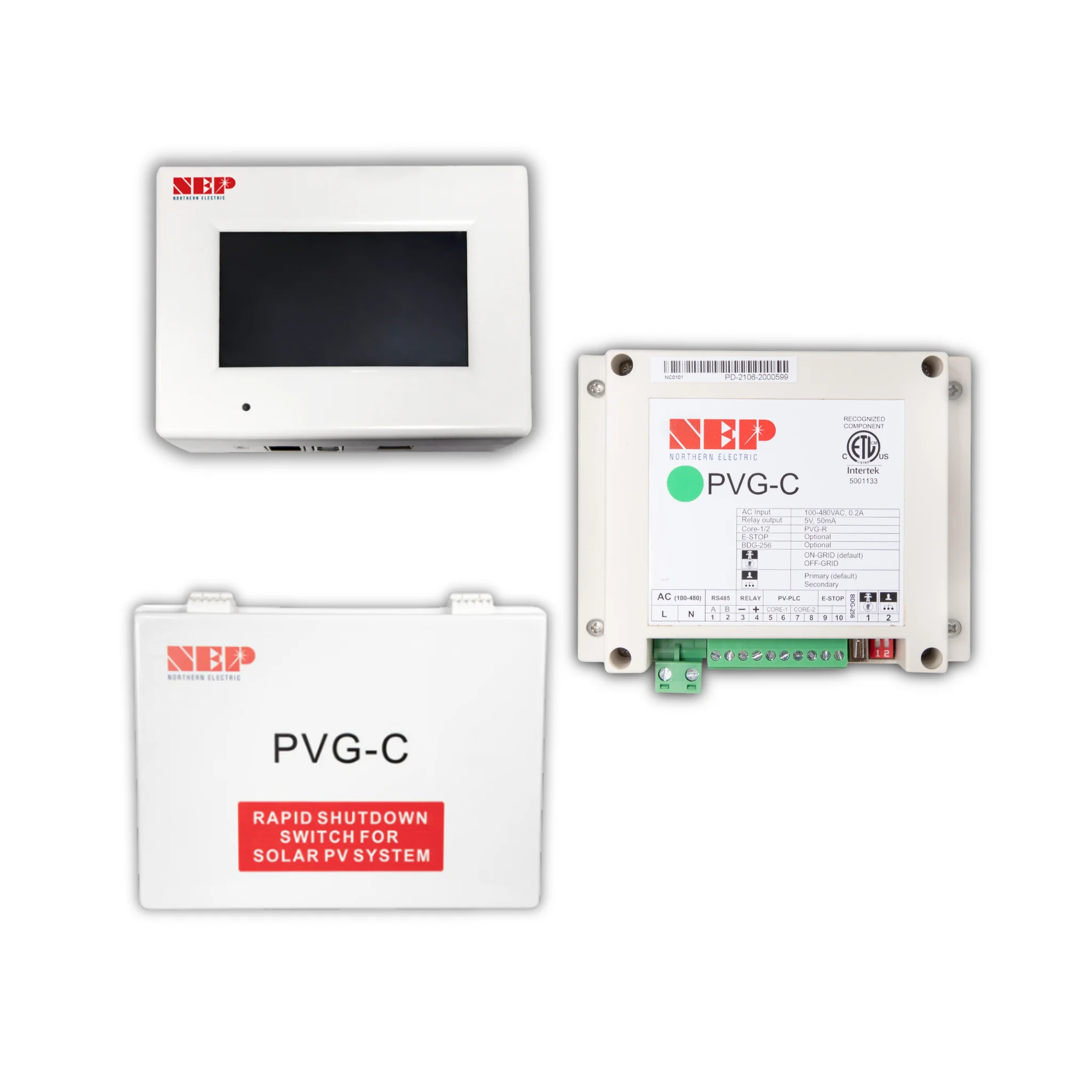

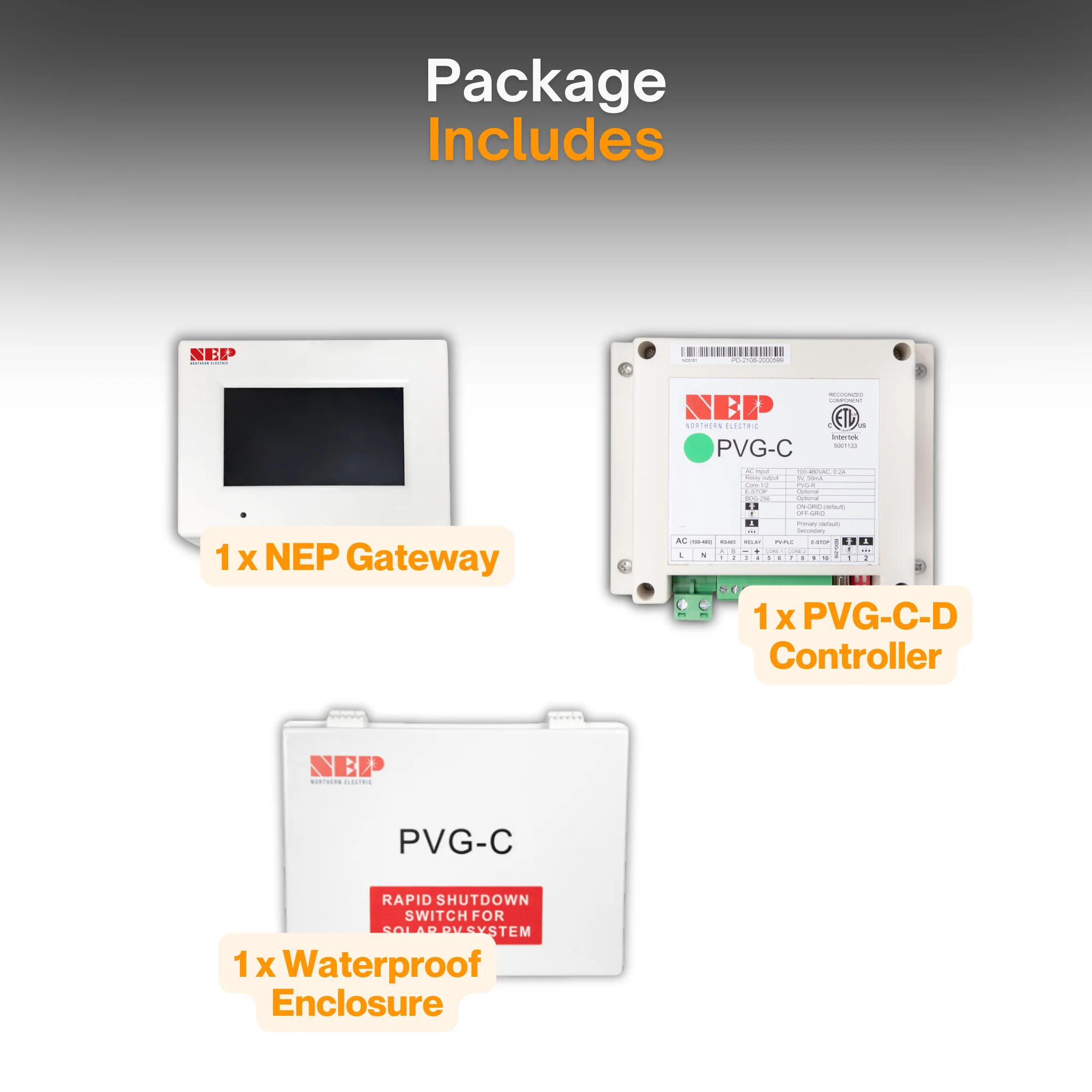

Package Includes

• 1 x NEP Gateway

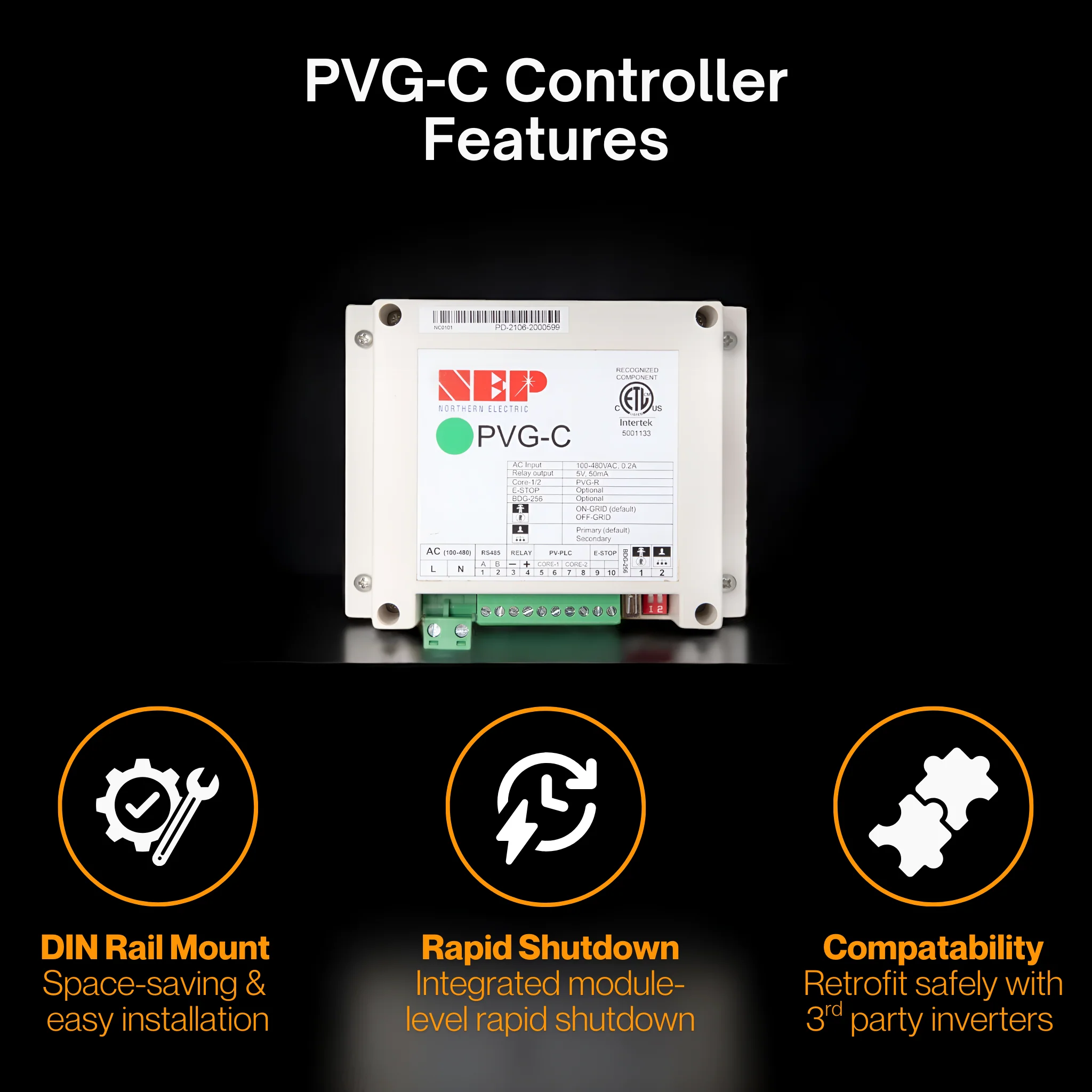

• 1 x NEP PVG-C-D Controller
• 1 x NEP Waterproof Enclosure

---

Applications

• Residential rooftop PV systems

• Commercial and industrial installations

• Projects requiring NEC-compliant RSD with non-NEP inverters
