NEP PVG-2 Rapid Shutdown Solution | SunSpec-Compliant Solar RSD for NEC 690.12, UL 1741, and CSA C22.2 Compliance | Dual-Input, 1500V, MC4-Ready

NEP PVG-2 Rapid Shutdown Solution | SunSpec-Compliant Solar RSD for NEC 690.12, UL 1741, and CSA C22.2 Compliance | Dual-Input, 1500V, MC4-Ready

Downloads:

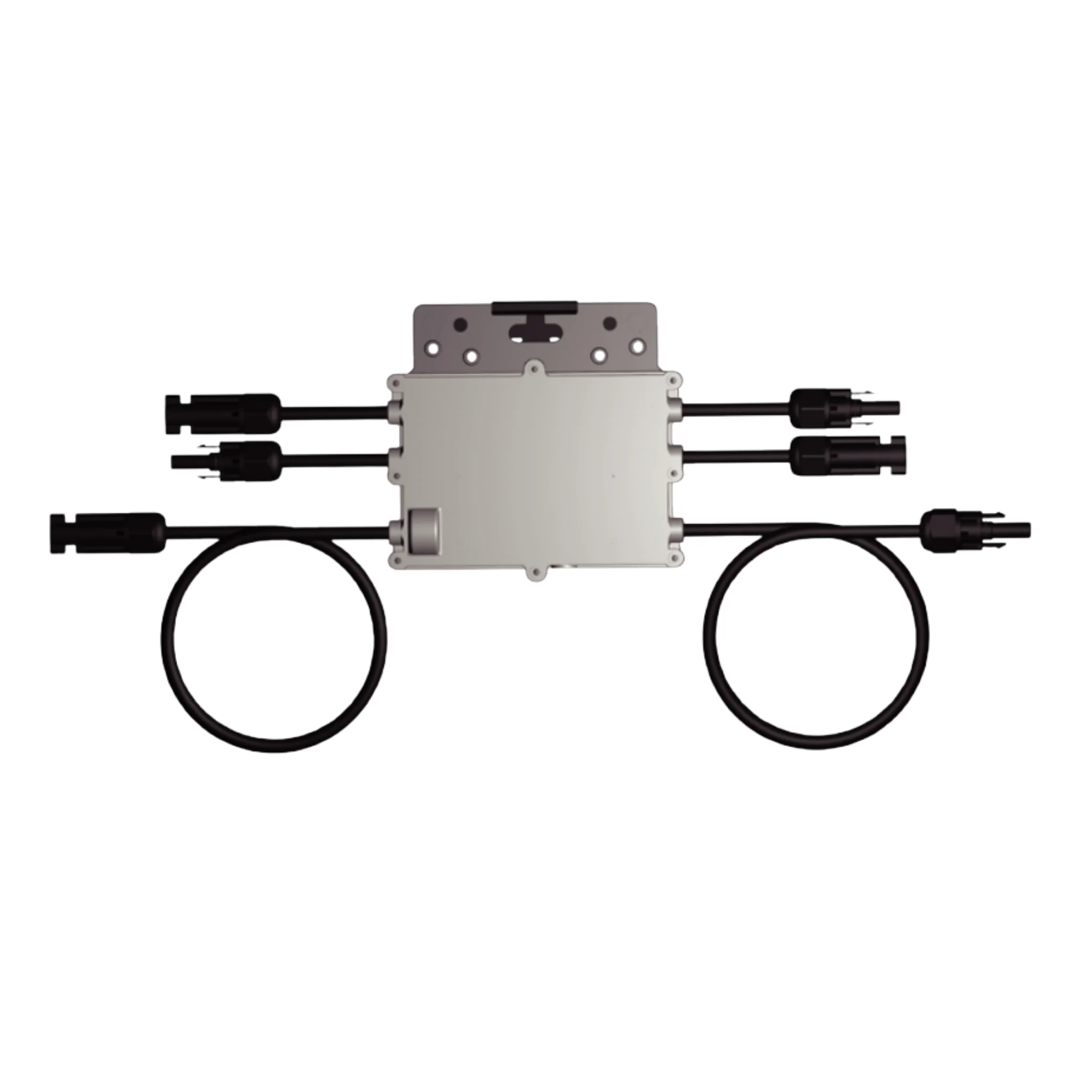

The NEP PVG-2 Rapid Shutdown Solution (RSD) is a high-performance safety device engineered to meet the latest NEC 690.12 rapid shutdown requirements for residential, commercial, and industrial solar energy systems. This dual-input module-level RSD ensures fast and reliable shutdown of solar modules during emergencies, protecting both personnel and property.

Compliant with SunSpec signaling, UL 1741, CSA C22.2 No. 107.1, and NEC 2017/2020 690.12, the PVG-2 integrates easily with most solar inverters through DC power line communication, eliminating the need for extra wiring or hardware.

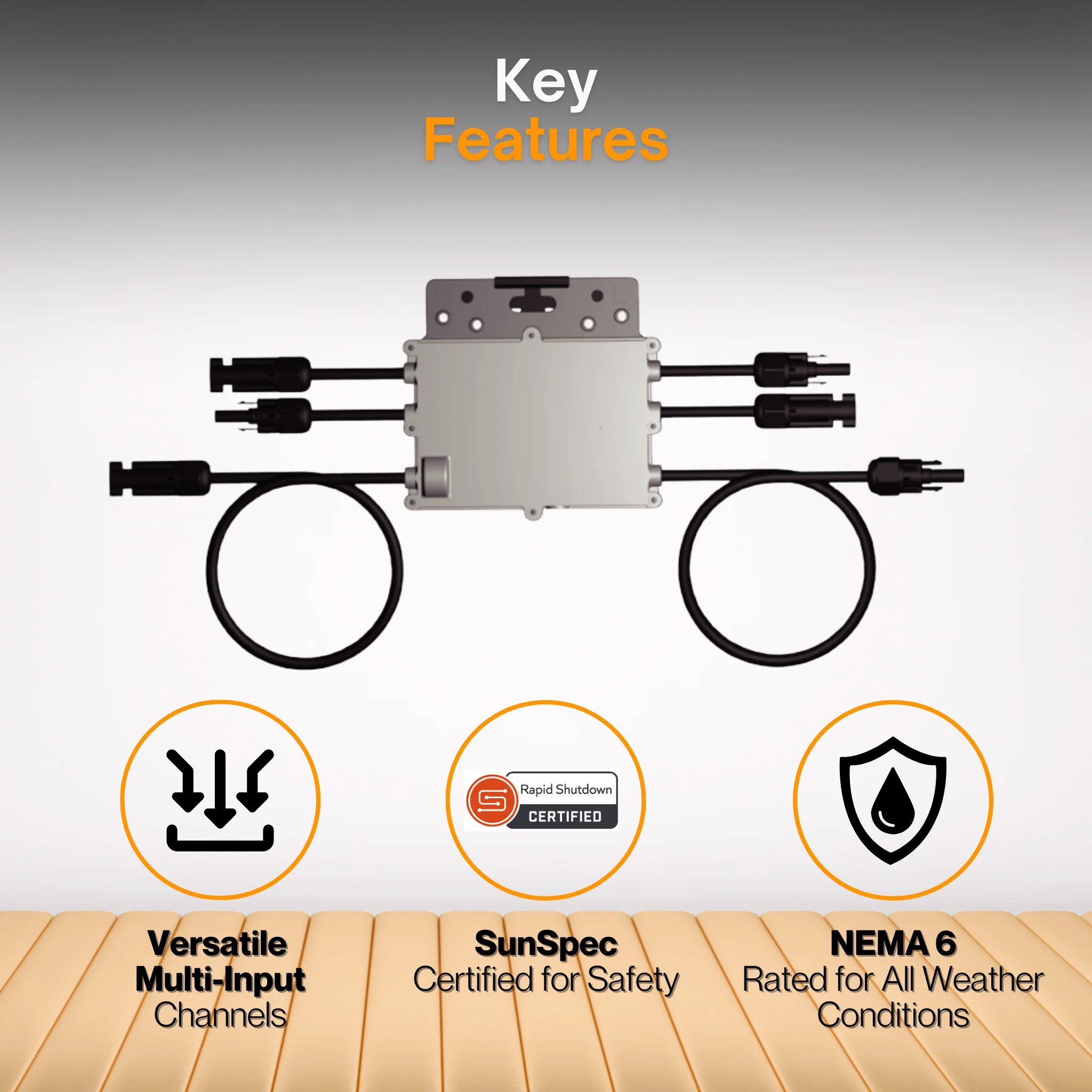

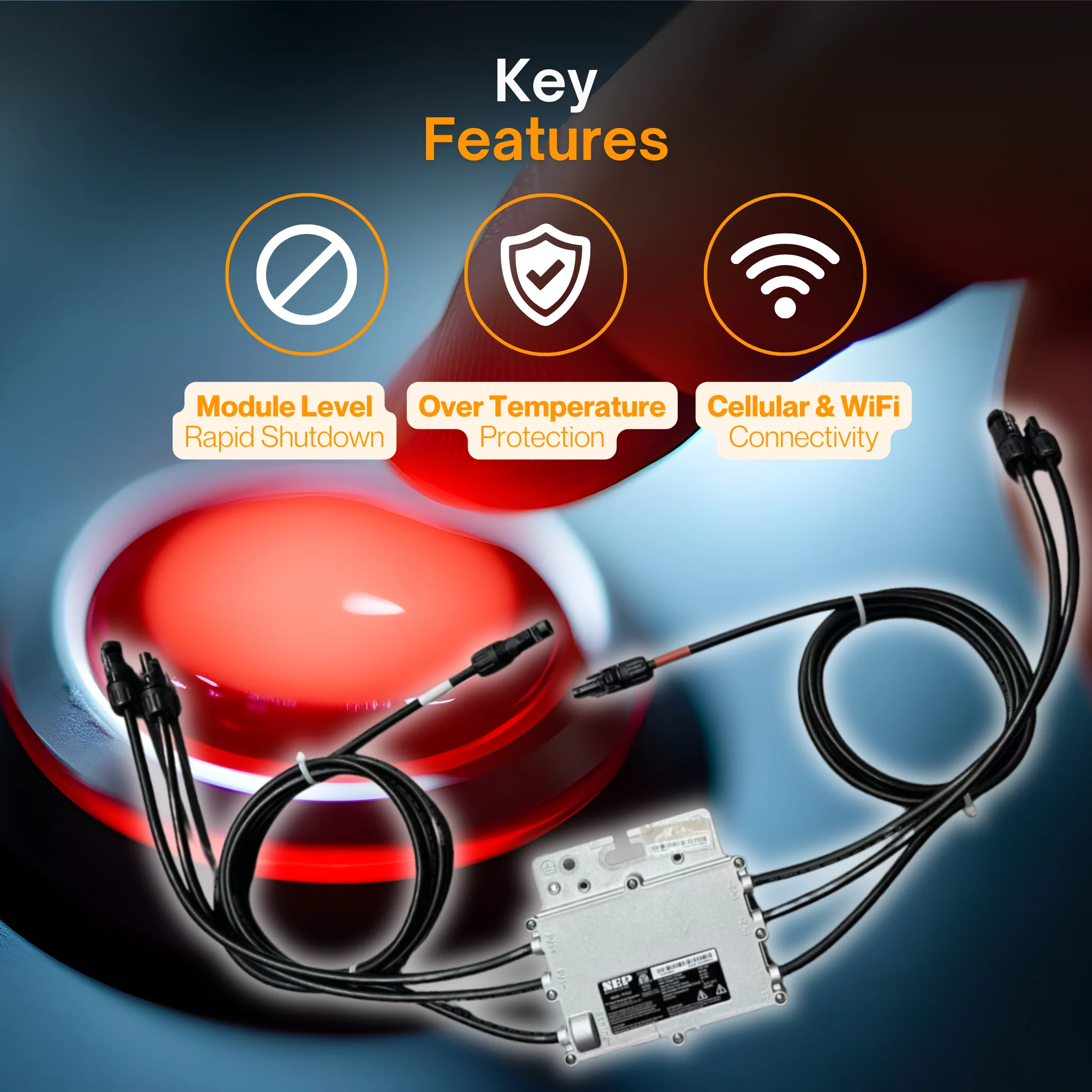

Key Features & Benefits:

  • NEC 690.12 Compliance
    Meets NEC 2014, 2017, and 2020 requirements for rapid shutdown of solar systems in the U.S. and Canada CEC 64-218.

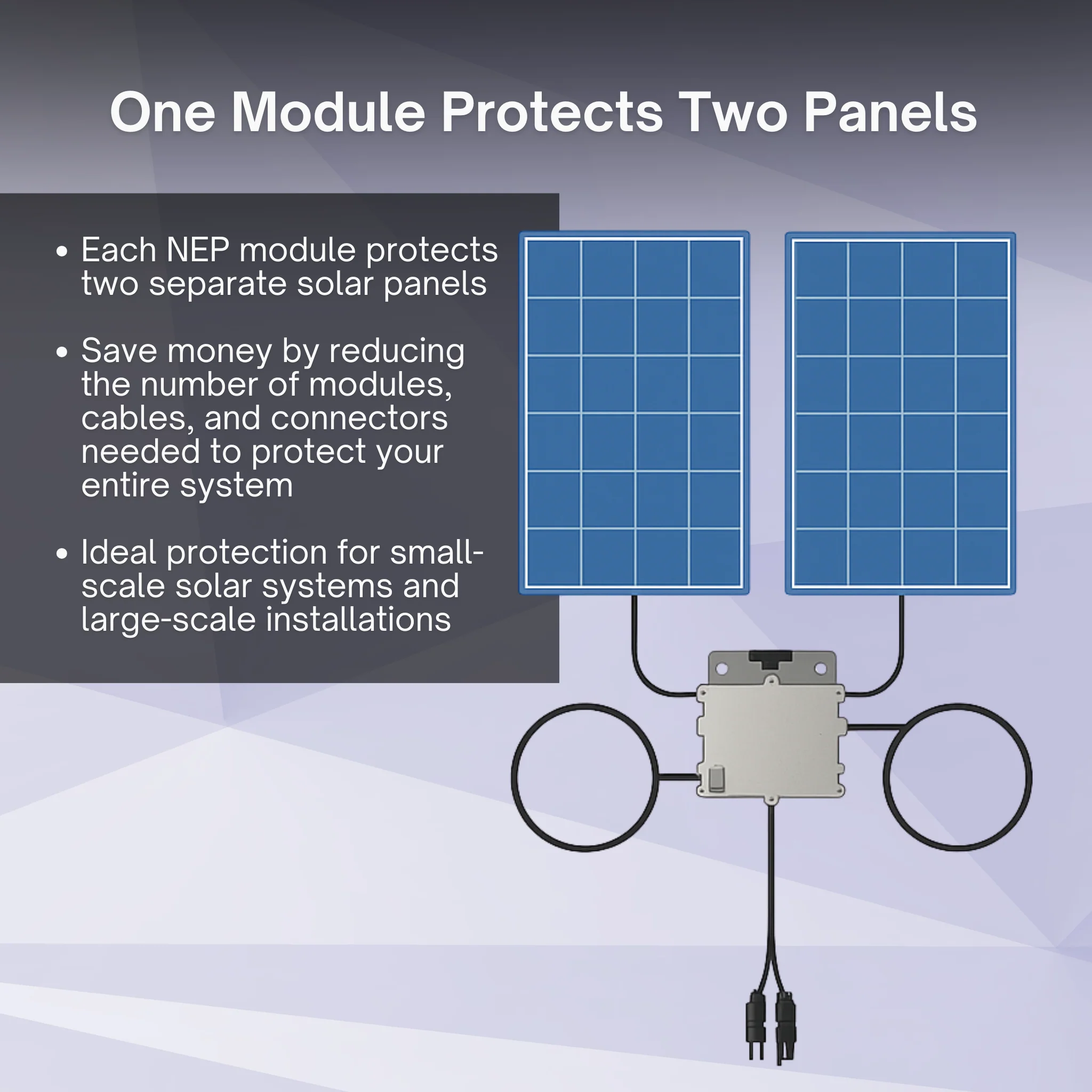

  • Dual PV Module Inputs
    Supports two solar panels per unit, reducing cost and simplifying installations that require rapid shutdown for multiple modules.
  • SunSpec Signaling Compatibility
    Works with all SunSpec-compliant inverters and uses existing DC lines for signal communication.
  • High-Voltage Ready
    Accepts up to 90V DC open circuit per input, and a total system voltage of up to 1500V DC.
  • MC4 Connectors and 12AWG Cable
    Pre-wired with MC4 connectors and standard 12AWG PV-rated cable for seamless integration with most solar panels.
  • Rugged, Outdoor-Rated Enclosure
    NEMA 6 protection for weather resistance and reliable performance in harsh environments from -40°C to +85°C.
  • Flexible Mounting Options
    Can be mounted on the module frame or rail, making it suitable for various racking systems and installation conditions.

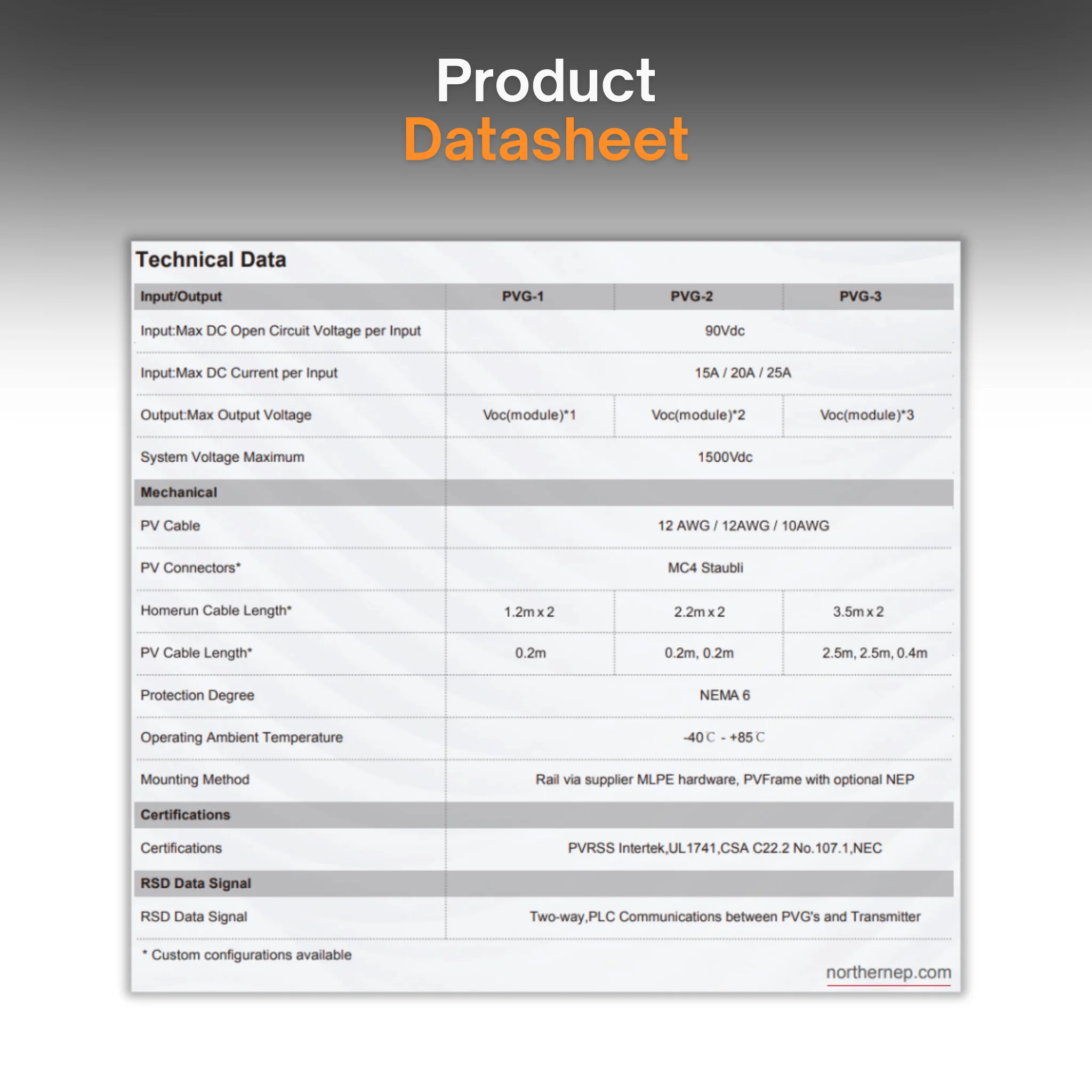

Technical Specifications:

  • Model: NEP PVG-2
  • Max DC Open Circuit Voltage per Input: 90V
  • Max DC Current per Input: 20A
  • Maximum System Voltage: 1500V
  • Output Voltage: Voc × n (n = 1/2/3/4)
  • Connector Type: MC4 (custom connectors available on request)
  • PV Cable Type: 12AWG
  • Enclosure Protection: NEMA 6
  • Operating Temperature Range: -40°C to +85°C
  • Dimensions: 5.90" × 5.71" × 1.00"
  • Communication: DC power line

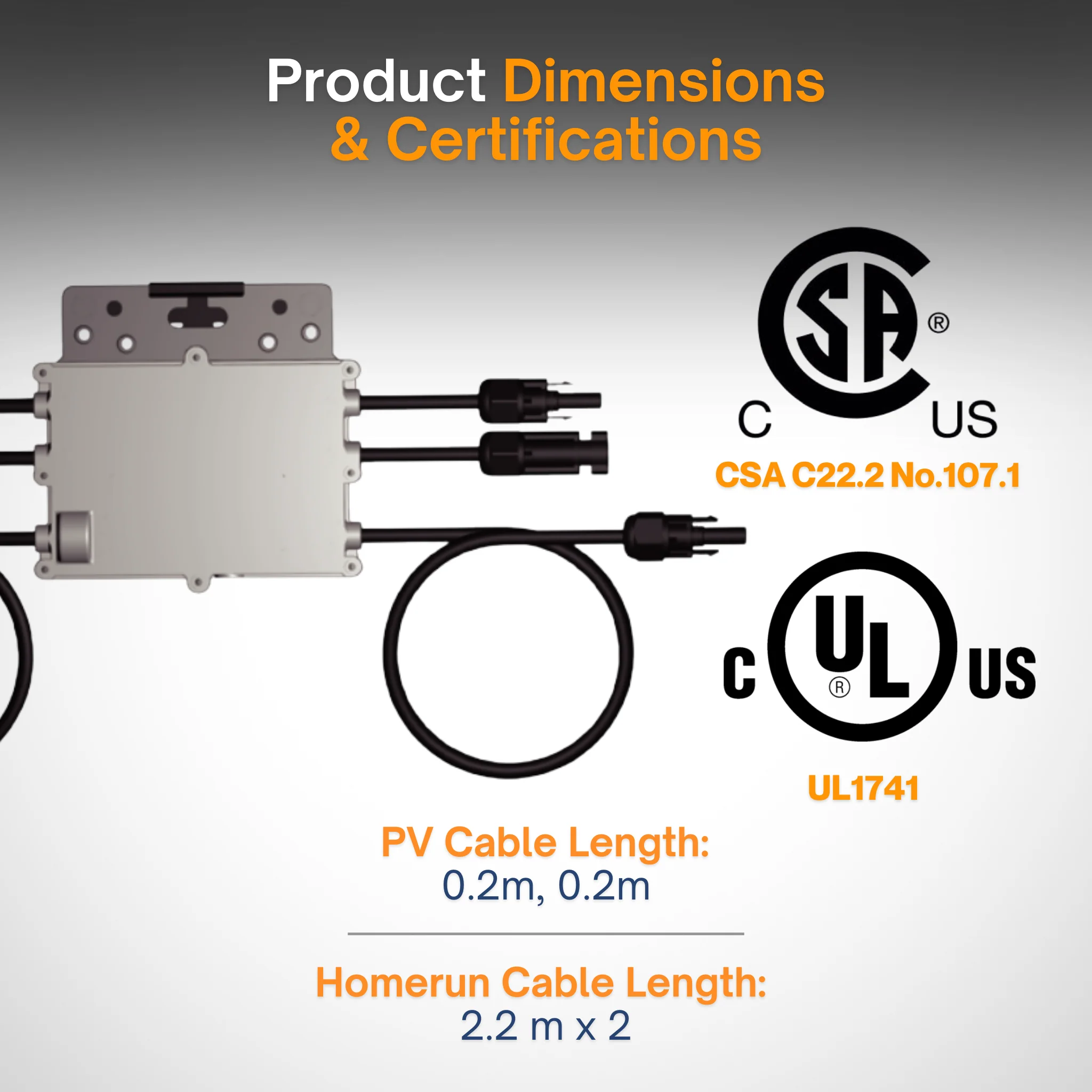

  • Certifications: UL 1741, CSA C22.2 No. 107.1, NEC 690.12, Canada CEC 64-218
  • Mounting Method: Rail or frame

Ideal For:

  • Installers and system integrators seeking NEC-compliant rapid shutdown devices
  • Residential and commercial solar installations requiring module-level shutdown
  • High-voltage PV arrays needing 1500V rated RSD units
  • Systems with SunSpec inverter compatibility



$330.00
