IntegraRack IR EarthBallast™ Mounting Kit - Robust Geotextile Material | W/ Quick and Secure Adhesion
IntegraRack IR EarthBallast™ Mounting Kit - Robust Geotextile Material | W/ Quick and Secure Adhesion

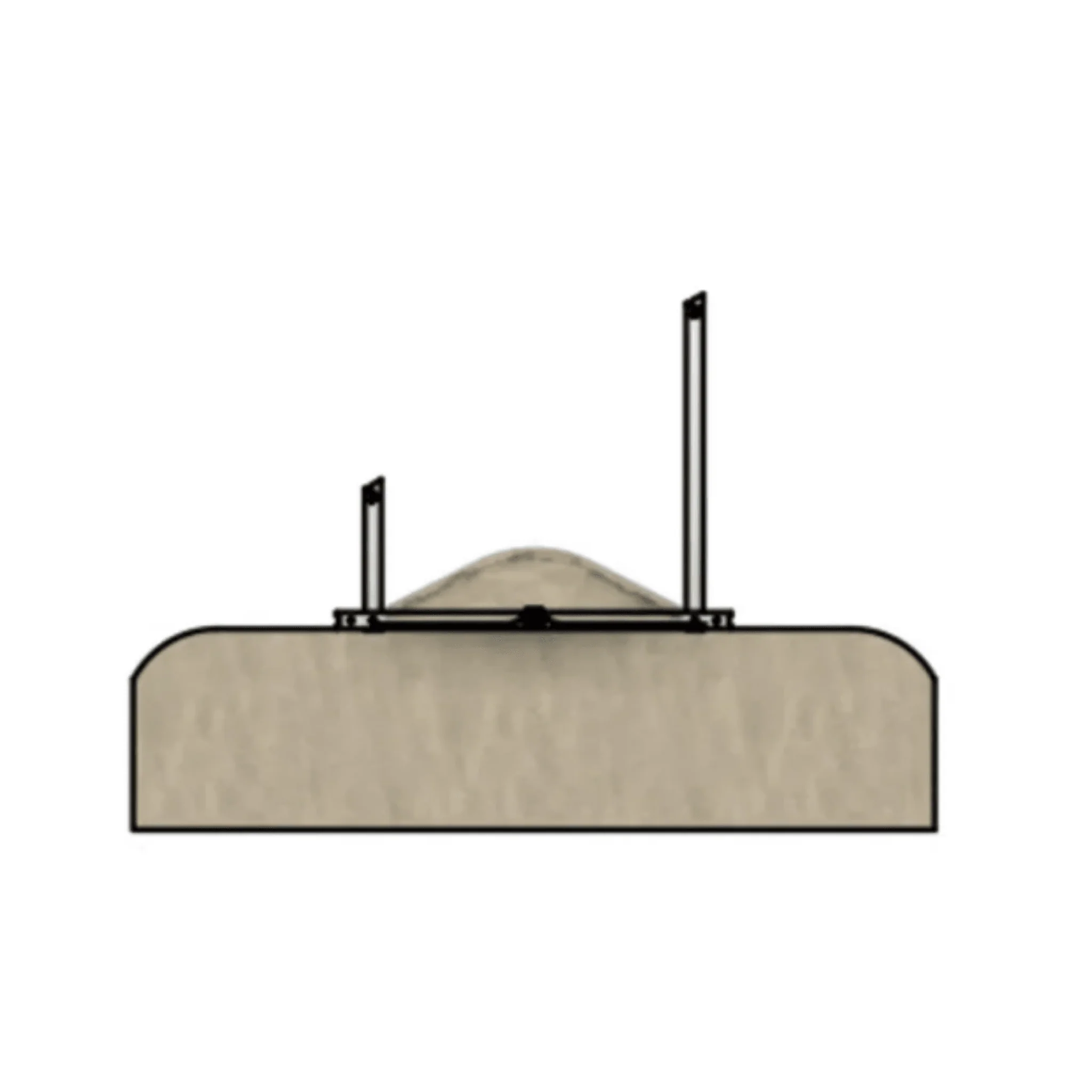

The IR EarthBallast™ Mounting Kit is an excellent option for trustworthy and effective solar systems! This package includes everything you require to mount up to 12 solar modules, which includes a durable 3' x 50' roll of geotextile material for excellent earth filling along with rock wall retention. Using the provided extremely strong 5-minute epoxy and mixing nozzles, you can quickly apply the material on every frame's base tube section, resulting in a huge, tight surface area for the earth mound. Each piece needs about 700 pounds of ballast fill material to ensure a sturdy and robust arrangement. Whether you use a skid-steer loader, tractor, or shovel, this kit makes installation simple. Stakes are optional but recommended for increased stability. Enhance your solar project with the IR EarthBallast™.
Key Features:
- Comprehensive Installation Kit: The IR EarthBallast™ Mounting Kit offers every piece of equipment needed for mounting up to 12 solar panels, which makes it ideal for residential and commercial solar projects. This kit facilitates installation by including every required part, assuring that you have everything you need for a solid and trustworthy setup. There is no necessity to look for additional supplies because this all-in-one kit includes everything you need.
- Robust Geotextile Material: The kit includes a 3' × 50' roll of high-strength geotextile material, which is known for its durability along with adaptability in earth filling and rock wall retention systems. This material is intended to be evenly spread over the base tubes and bonded using epoxy, resulting in a huge tighter surface area that supports the earth mound. This guarantees that the solar panel modules are firmly attached, giving you peace of mind that the installation will survive a variety of weather situations.
- Quick and Secure Adhesion: The IR EarthBallast™ Mounting Kit includes a caulk gun-size tube of high-strength 5-minute epoxy and two mixing nozzles. This robust glue forms a rapid and durable binding bond between the geotextile material and the frame's base tube sections. The quick-setting epoxy simplifies the whole installation process, lowering your time while still providing a sturdy and reliable base for your solar panels.
- Flexible and Efficient Ballast System: Every section of the solar power system will need around 700 pounds of ballast fill material, which includes dirt, crushed rock, or road base. This versatile ballast system enables the utilization of commonly accessible materials, thus making it both convenient and affordable. The fill material can be deposited with a skid-steer loader, tractor, or shovel, giving you a variety of alternatives depending on your equipment and the conditions of the site. Stakes are not required, however, they have been recommended for enhanced support, making sure your solar panels remain securely in place.
Included Hardware:
- ( 1 ) 3' x 50' Roll of Geotextile Material
- ( 1 ) Tube of 5 Min. Epoxy
- ( 1 ) Extra Mixing Nozzle
- ( 1 ) Scuff Pads
- ( 1 ) Pack of Heavy Duty
- Alcohol Wipes
Download:
Original: $742.00
-70%$742.00
$222.60
Description
The IR EarthBallast™ Mounting Kit is an excellent option for trustworthy and effective solar systems! This package includes everything you require to mount up to 12 solar modules, which includes a durable 3' x 50' roll of geotextile material for excellent earth filling along with rock wall retention. Using the provided extremely strong 5-minute epoxy and mixing nozzles, you can quickly apply the material on every frame's base tube section, resulting in a huge, tight surface area for the earth mound. Each piece needs about 700 pounds of ballast fill material to ensure a sturdy and robust arrangement. Whether you use a skid-steer loader, tractor, or shovel, this kit makes installation simple. Stakes are optional but recommended for increased stability. Enhance your solar project with the IR EarthBallast™.
Key Features:
- Comprehensive Installation Kit: The IR EarthBallast™ Mounting Kit offers every piece of equipment needed for mounting up to 12 solar panels, which makes it ideal for residential and commercial solar projects. This kit facilitates installation by including every required part, assuring that you have everything you need for a solid and trustworthy setup. There is no necessity to look for additional supplies because this all-in-one kit includes everything you need.
- Robust Geotextile Material: The kit includes a 3' × 50' roll of high-strength geotextile material, which is known for its durability along with adaptability in earth filling and rock wall retention systems. This material is intended to be evenly spread over the base tubes and bonded using epoxy, resulting in a huge tighter surface area that supports the earth mound. This guarantees that the solar panel modules are firmly attached, giving you peace of mind that the installation will survive a variety of weather situations.
- Quick and Secure Adhesion: The IR EarthBallast™ Mounting Kit includes a caulk gun-size tube of high-strength 5-minute epoxy and two mixing nozzles. This robust glue forms a rapid and durable binding bond between the geotextile material and the frame's base tube sections. The quick-setting epoxy simplifies the whole installation process, lowering your time while still providing a sturdy and reliable base for your solar panels.
- Flexible and Efficient Ballast System: Every section of the solar power system will need around 700 pounds of ballast fill material, which includes dirt, crushed rock, or road base. This versatile ballast system enables the utilization of commonly accessible materials, thus making it both convenient and affordable. The fill material can be deposited with a skid-steer loader, tractor, or shovel, giving you a variety of alternatives depending on your equipment and the conditions of the site. Stakes are not required, however, they have been recommended for enhanced support, making sure your solar panels remain securely in place.
Included Hardware:
- ( 1 ) 3' x 50' Roll of Geotextile Material
- ( 1 ) Tube of 5 Min. Epoxy
- ( 1 ) Extra Mixing Nozzle
- ( 1 ) Scuff Pads
- ( 1 ) Pack of Heavy Duty
- Alcohol Wipes
