Non-Insulated Pin Terminals - Tin Plated Copper - 2/0 AWG, 4/0 AWG, 2 AWG, 4 AWG - High Conductivity Electrical Connectors

Ensure reliable and high-performance electrical connections with our range of non-insulated pin terminals. Constructed from tin-plated copper, these terminals offer excellent conductivity, corrosion resistance, and durability for a variety of electrical applications. Choose the right size for your project from our selection of 2/0 AWG, 4/0 AWG, 2 AWG, and 4 AWG options.

Features:

• Tin-Plated Copper Construction: Provides superior conductivity and corrosion protection.
• Non-Insulated Design: For applications where insulation is not required or will be provided separately.
• Versatile Application: Ideal for use in automotive, industrial, and other electrical systems.

Variants:

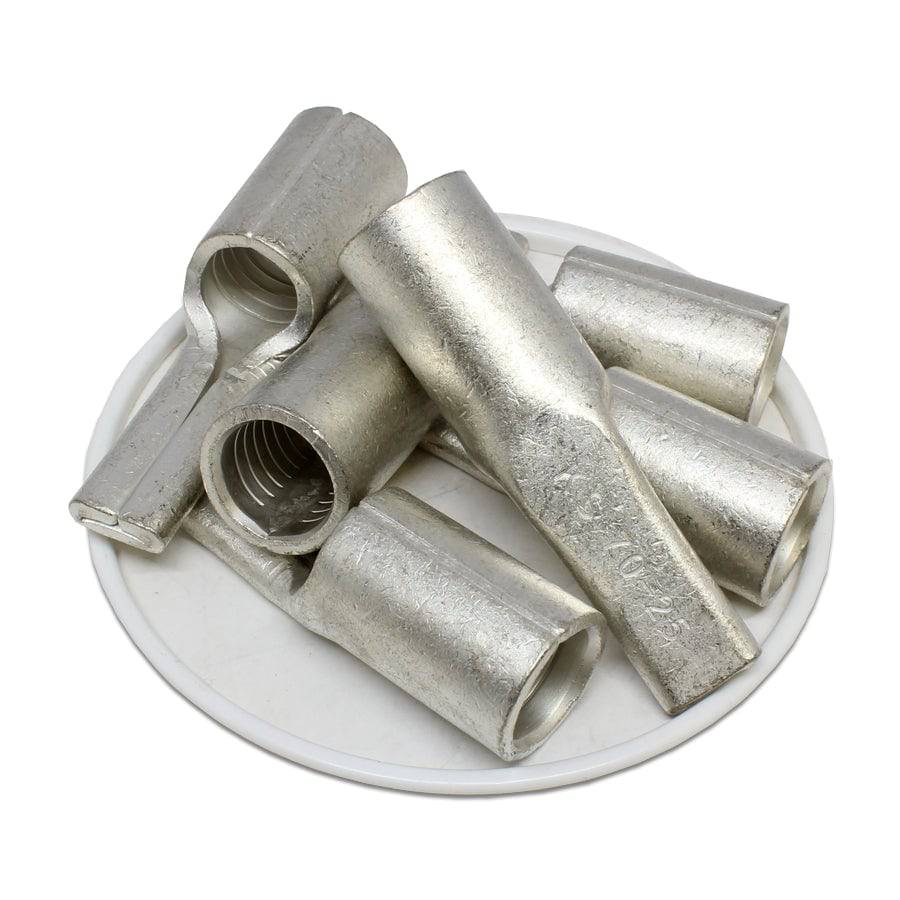

• 2/0 AWG Pin Terminals
  • Wire Gauge: 2/0 AWG (70mm²)
  • Maximum Current: 265 Amps
  • Maximum Voltage: 2000V
  • Terminal Thickness: 2.00mm
  • Part Number: PTNB70-25

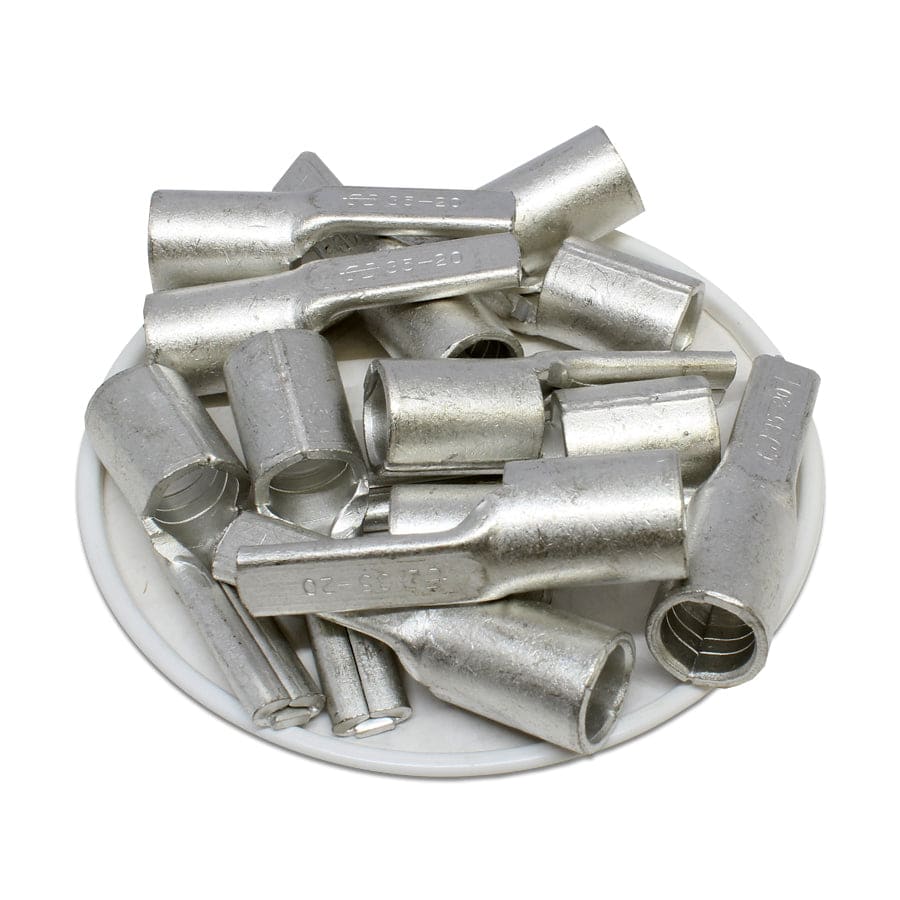

• 2 AWG Pin Terminals
  • Wire Gauge: 2 AWG (35mm²)
  • Maximum Current: 170 Amps
  • Maximum Voltage: 2000V
  • Terminal Thickness: 1.5mm
  • Part Number: PTNB35-20

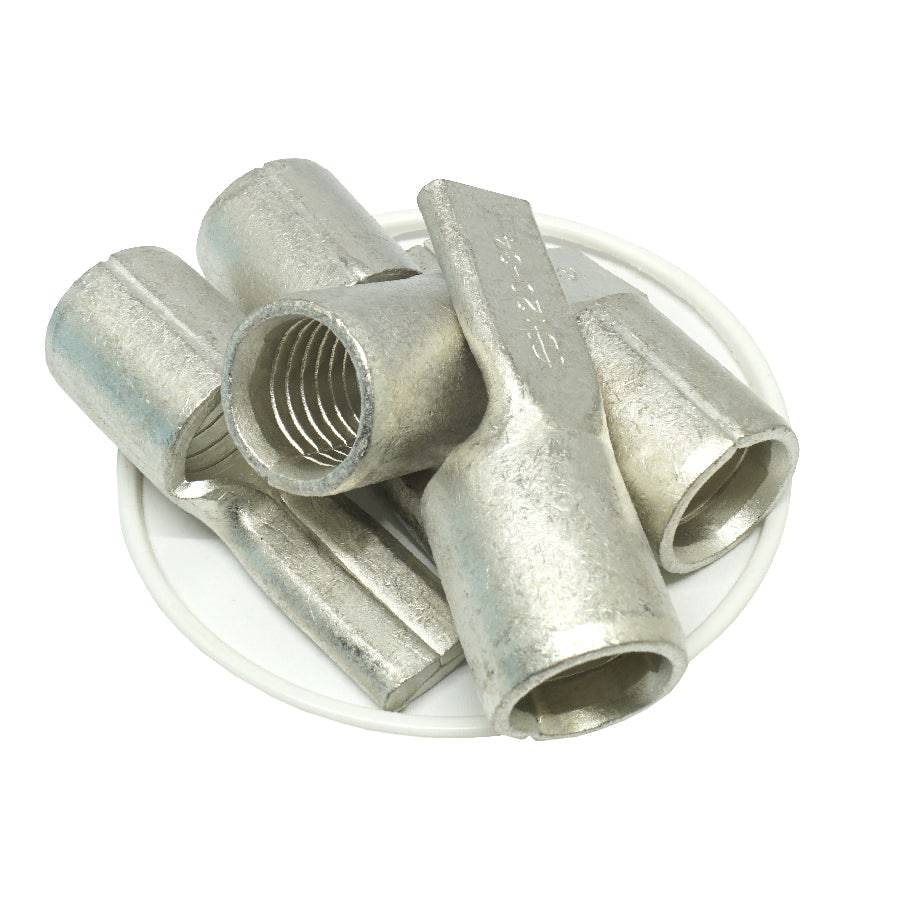

• 4 AWG Pin Terminals
  • Wire Gauge: 4 AWG (25mm²)
  • Maximum Current: 125 Amps
  • Maximum Voltage: 2000V
  • Terminal Thickness: 1.2mm
  • Part Number: PTNB25-15

Download

SASPPT4G - Datasheet

SASPPT2G - Datasheet

SASPPT2.0G - Datasheet
