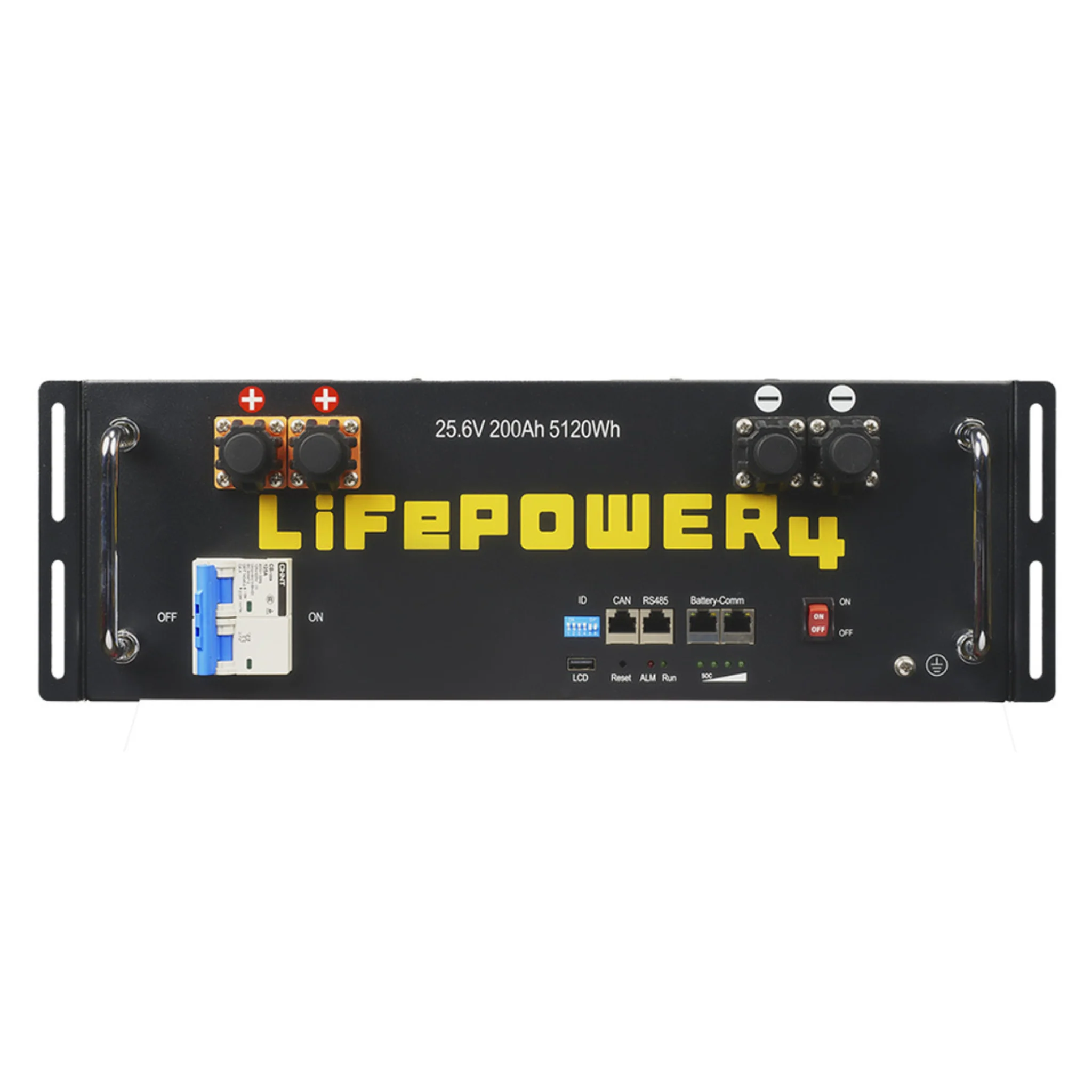

The EG4 LifePower4 V2 Server Rack Battery - 24V 200Ah is a new standard for conserving energy, featuring improved performance, protection, and flexibility. It has 16 UL-recognized prismatic cells and can supply 5.12kWh of energy, over 6,000 cycles at 80% Depth of Discharge, and a maximum output of 7,680W. Its updated 200A Battery Management System (BMS) assures dependable performance, while dual fire arrests emphasize security. It can scale to an astonishing 327.7kWh and has closed-loop interaction for a maximum of 64 batteries, making it appropriate for big power requirements. Boasting enhanced connectivity, user-friendly features, and a 10-year warranty, is the best approach for future energy independence.

Advanced Benefits:

Over 6,000 Cycles at 80% Depth of Discharge (DoD): This battery is designed for durability, with over 6,000 cycles at 80% DoD, giving it a dependable and long-lasting energy-saving approach.
5.12kWh Capacity for High Energy Needs: Having a nominal voltage of 25.6V and a capacity of 200Ah, it is capable of holding 5.12kWh of energy, making it ideal for homeowners, businesses, or off-grid applications with significant energy requirements.
Scalable Up to 327.7kWh for Growing Requirements: Handles a maximum of 64 batteries in parallel through closed-loop communication, allowing for a capacity increase to an astonishing 327.7kWh, making it perfect for larger projects.
200A BMS with a Peak Power of 7,680W: The improved Battery Management System provides 5,120W of continuously available power with a maximum of 7,680W, providing consistently excellent functioning throughout high-demand scenarios.
10-Year Limited Warranty for Peace of Mind: With an exceptional 10-year warranty, this power source ensures dependability and their worth, preserving the investment you made over the long run.

Key features:

Robust Architecture with Quality Prismatic Cells: This battery, which contains 16 UL-recognized 3.2V prismatic cells, provides outstanding performance alongside durability that endures in challenging settings.
Advanced 200A Battery Management System (BMS): The inbuilt 200A BMS ensures improved power control, allowing for a constant supply of 5,120W and maximum bursts of 7,680W for a maximum of 5 seconds.
Efficient Communication via CAN Bus and RS485 Ports: The design has a CAN bus port for quick interaction with Victron inverters and an RS485 port enabling firmware upgrades, providing effortless integration, and preparing for future adaptability.
Dual Positive/Negative Terminals for Versatile Connections: It has both two positive and two negative ends that support 2-AWG compression lugs, which makes assembly easier and increases the system's versatility.
Enhanced Safety with Dual Fire Arrestors: The battery is designed for safe functioning and contains twin onboard fire arrestors, putting security priority in home and business uses.

General Specifications:

Voltage: 25.6V
Capacity: 200Ah
Energy Capacity: 5.12kWh
Charging Current (Max. Continuous): 100A
Discharging Current (Max. Continuous): 200A
Maximum Modules in Series: 1
Maximum Modules in Parallel: 64

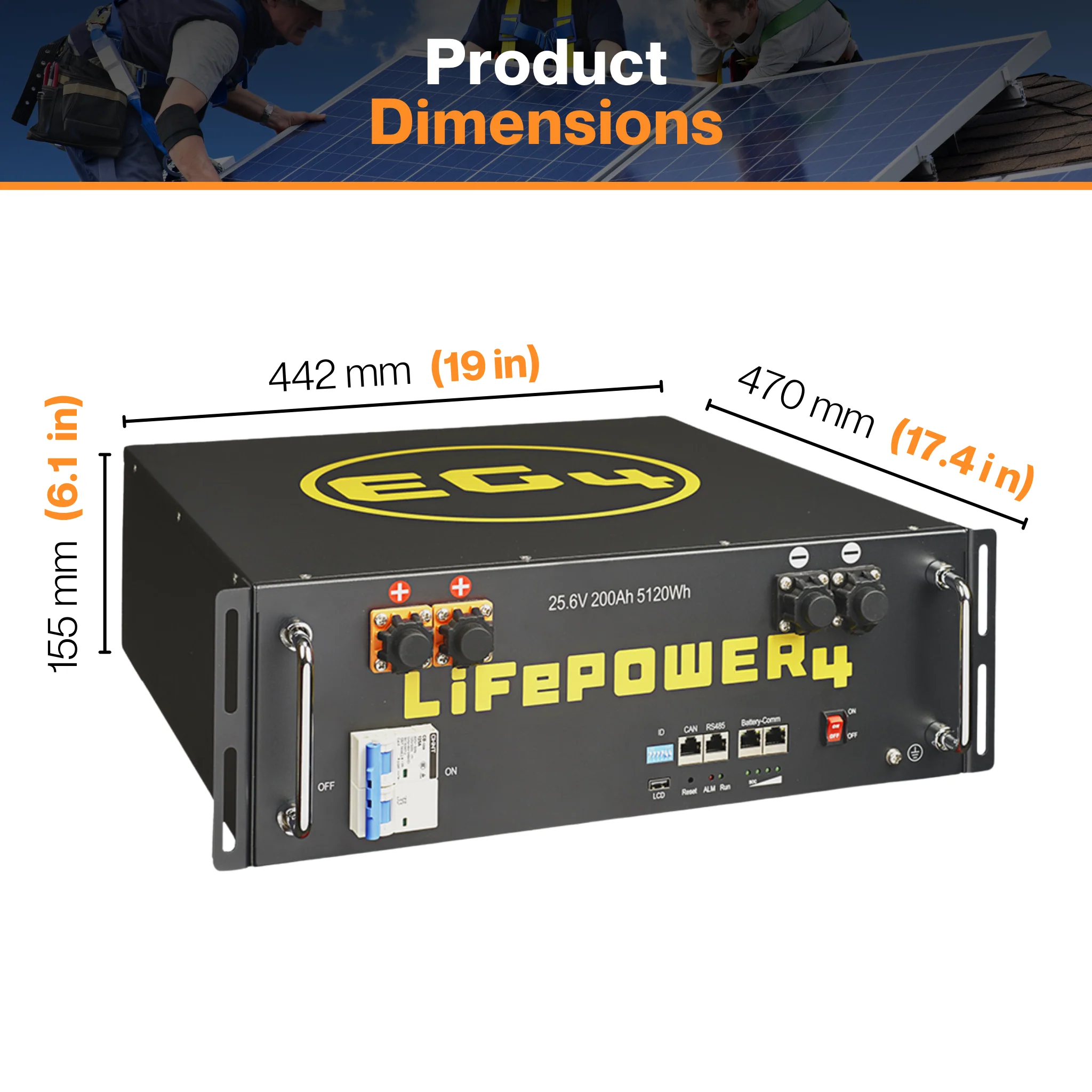

Dimension (H×W×D): 6.1x19x17.4 in. (155×442x 470 mm)
Weight: 99.2 lbs. (45 kg)

Technical Protection Specifications:

Charging Over Current Protection: >100A for 20s, >220A for 10s
Discharge Over Current Protection: >100A for 10s, >220A for 30s
Short Circuit Protection: >250A for <0.1s
Cell Over-Voltage Protection: 3.65V
Cell Under-Voltage Protection: 2.5V
Total Over-Voltage Protection: 29.2V
Total Under-Voltage Protection: 20.0V

Environmental Parameters:

Charging Range: 32°F-113°F (0°C-45°C)
Discharging Range: -4°F-122°F (-20°C-50°C)
Storage Range: -4°F-122°F (-20°C-50°C)
Ingress Protection: IP21
