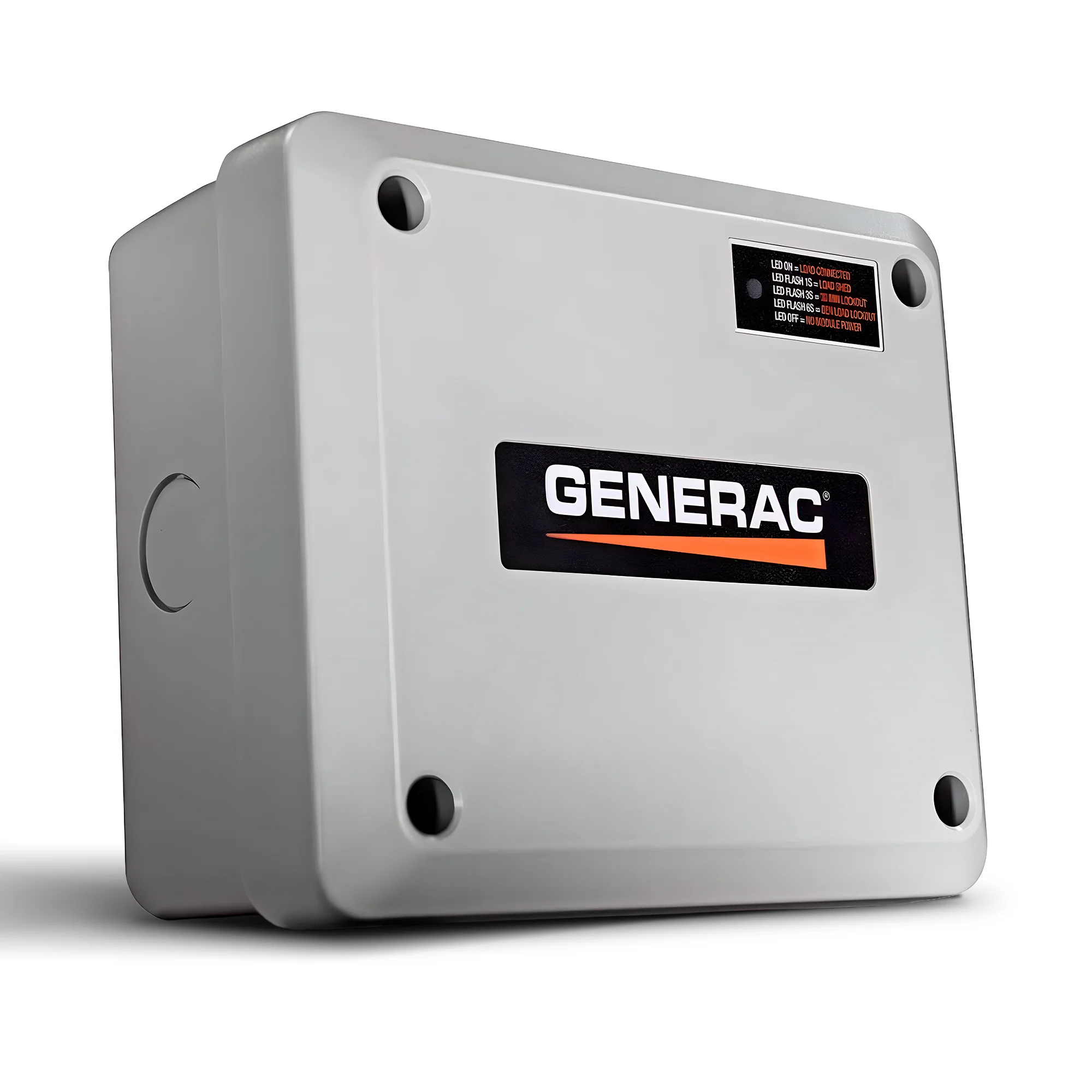

The Generac 7000-1 Load Manager 50A is a smart, automatic load management and load shedding module designed to optimize performance and protect Generac standby generators and PWRcell™ energy storage systems. Built as part of Generac’s Smart Power Management System, this autonomous module helps homeowners and installers maximize available generator capacity while reducing overall system cost.

Unlike traditional load management systems that rely on a central controller, the Generac Load Manager 50A operates independently, monitoring generator frequency in real time to determine true available capacity. When system frequency drops below the configured threshold, the unit automatically sheds non-essential loads, allowing the generator or PWRcell ESS to recover quickly and maintain reliable power delivery.

Key Features & Benefits

50 Amp Load Management Module for residential standby generators
Automatic load shedding based on real-time frequency (Hz), not estimated load
Self-aware, autonomous operation – no external controller required
Supports up to 8 Generac Load Managers in a single system
Priority settings (1–8) allow controlled startup of large loads like HVAC
Lock-out mode for non-essential circuits during outages
Helps reduce generator size requirements, lowering total system cost
Fully compatible with Generac standby generators and PWRcell™ ESS

Ideal Applications

Home standby generator load management
HVAC load shedding for generators
Whole-house generator power optimization
Residential generator load control systems
Smart energy management with Generac PWRcell

Technical Specifications

Model: G0070001 (7000-1)
Rated Current: 50 Amps (Resistive)
Voltage: 220 / 240 VAC
Inductive Amps: 40 A
Locked Rotor Amps: 180 A
Frequency Selectability: 50 Hz / 60 Hz
User-Configurable Frequency Sensitivity: 0.2 Hz or 2.0 Hz

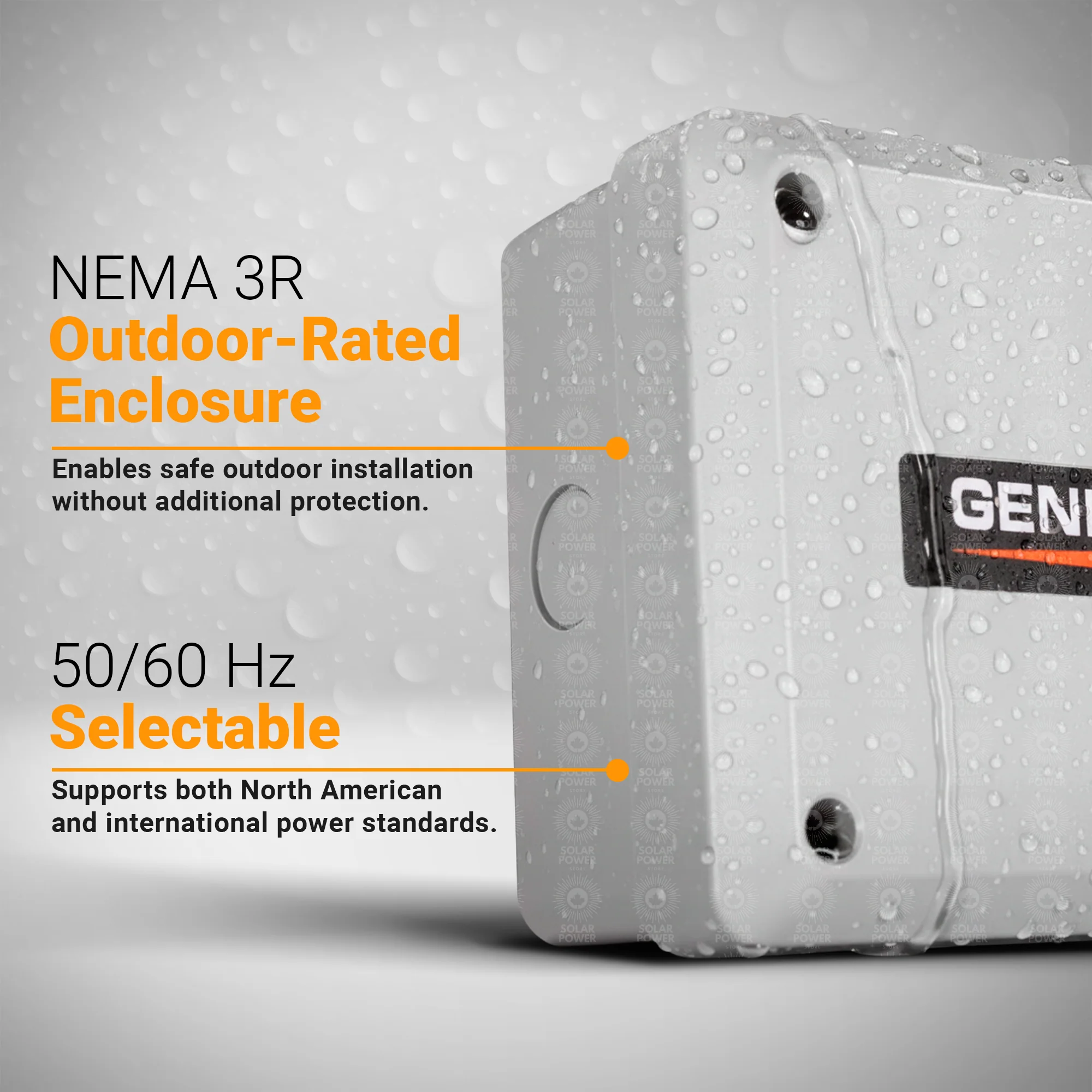

Enclosure: NEMA 3R, UL 50 rated (outdoor-capable)
Poles: 2
Warranty : 3-Year Limited Warranty

Power Management System

Generac 7000-1 Load Manager 50A | Smart Automatic Load Shedding Module | 240V, 2-Pole, NEMA 3R | Frequency-Based Load Management | Priority Load Control | 50/60 Hz | For Generac Standby Generators & PWRcell™ ESS
